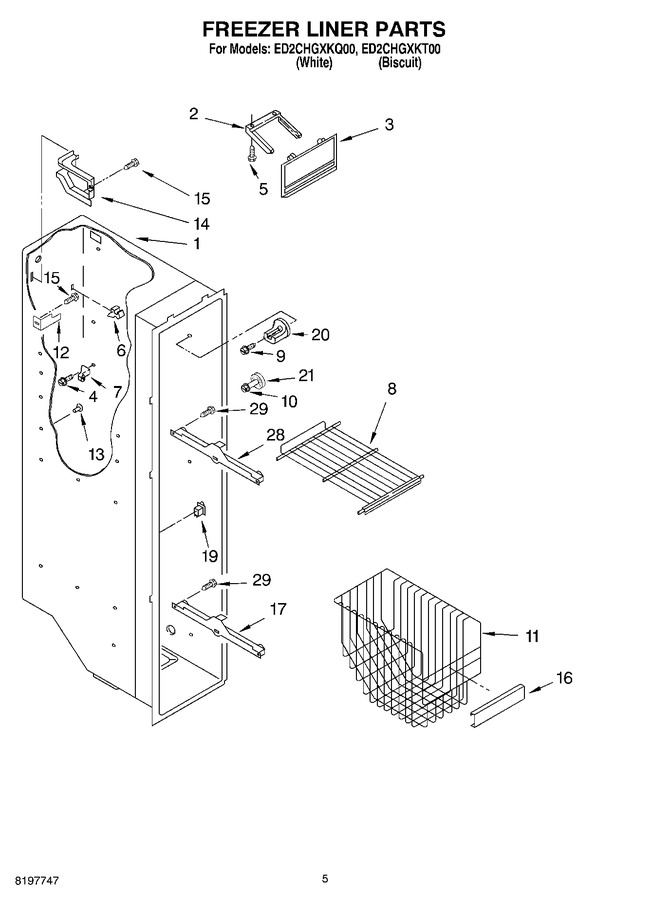

04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 66.58
4	W10142289		Screw   (Replaces: 3400893)				$ 9.15
5	WP489478		Screw   (Replaces: 489478)				$ 7.75
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196206		Support, Stud (4)		Appelez-nous	-
8	2174265		Shelf (shelf, Large (2))		Appelez-nous	-
8	WP2174249K		Shelf (shelf, Small (1))   (Replaces: 2174249)				$ 211.19
9	W10142289		Screw   (Replaces: 3400893)				$ 9.15
10	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
11	2181762		Freezer Bin		Appelez-nous	-
12	2209674		Bracket, Fill Tube		Appelez-nous	-
13	2176134		Grommet (4)				$ 5.83
14	2155572		Cover, Wiring		Appelez-nous	-
15	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.02
16	2195904K		Trim, Basket   (Replaces: 2195904)		Appelez-nous	-
17	2181759		Slide, Freezer Bin (left Side)		Appelez-nous	-
17	2181760		Slide, Freezer Bin (right Side)		Appelez-nous	-
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	2196207		Stud, Rear				$ 7.61
21	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
28	W10845585		Slide, Ice Container (left Side)   (Replaces: 1119237)				$ 132.77
28	W10845583		Slide, Ice Container (right Side)   (Replaces: 1119293)				$ 123.92
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-
