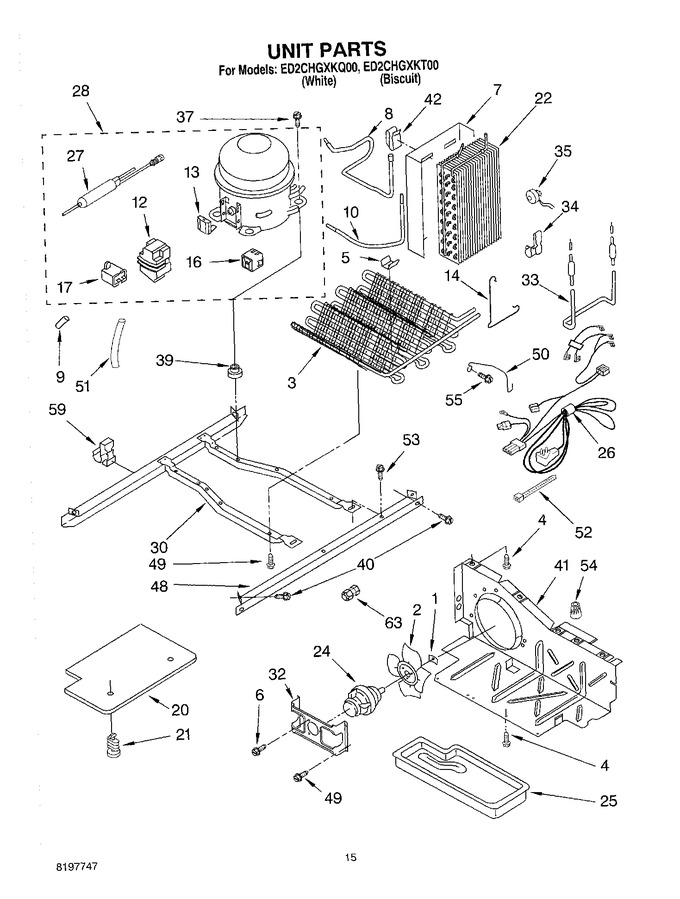

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	2190685		Blade, Fan				$ 52.00
3	2204484		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
6	681390		Screw   (Replaces: 489099)				$ 13.06
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
8	2205764		Tube Suction   (Replaces: 2204238)				$ 84.93
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.73
10	2211760		Tube, Condenser To Heat Loop		Appelez-nous	-
12	WP2162358		Cover (service Compressor Only)   (Replaces: 4387731)				$ 90.75
13	4387535		Overload (service Compressor Only- Includes Relay)   (Replaces: 4387767)				$ 181.95
14	2161324		Clip, Defrost Heater		Appelez-nous	-
16	2216722		Start-device, Combination (start Relay And Overload) For Production Compressor Only		Appelez-nous	-
17	WP4387764		Capacitor (service Compressor Only)   (Replaces: 4387764)				$ 177.04
20	2182057		Unit Cover, Bottom				$ 72.28
21	489396		Clip				$ 10.72
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 339.85
24	W10822259		Motor, Fan   (Replaces: 2188537)			Immediately	$ 221.30
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2216405		Harness, Unit		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 52.57
28	W10309990		Compressor (includes Items 12, 13, 17 & 27)   (Replaces: 2212191)			Immediately	$ 632.81
30	2304903		Frame, Unit Mounting   (Replaces: 2160501)				$ 233.03
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
33	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 117.38
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
37	W11661574		Screw   (Replaces: 489473)				$ 13.61
39	W11661108		Grommet (4)   (Replaces: 2183042)				$ 14.49
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
42	2155547		Clip, Heat		Appelez-nous	-
48	2149718		Rail, Unit Mounting		Appelez-nous	-
49	W11544659		Screw   (Replaces: 8281232)				$ 13.67
50	2186496		Guard, Fan		Appelez-nous	-
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
52	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
54	850145		Wire Connector		Appelez-nous	-
55	WP489478		Screw   (Replaces: 489478)				$ 7.75
59	2208280		Clip, Wire & Tube		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 91.35
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 130.71
63	WP4373559		Connector, Water Tube   (Replaces: 2209709)				$ 77.35
63	978026		Valve, Access (5/16``)			Immediately	$ 128.09
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
