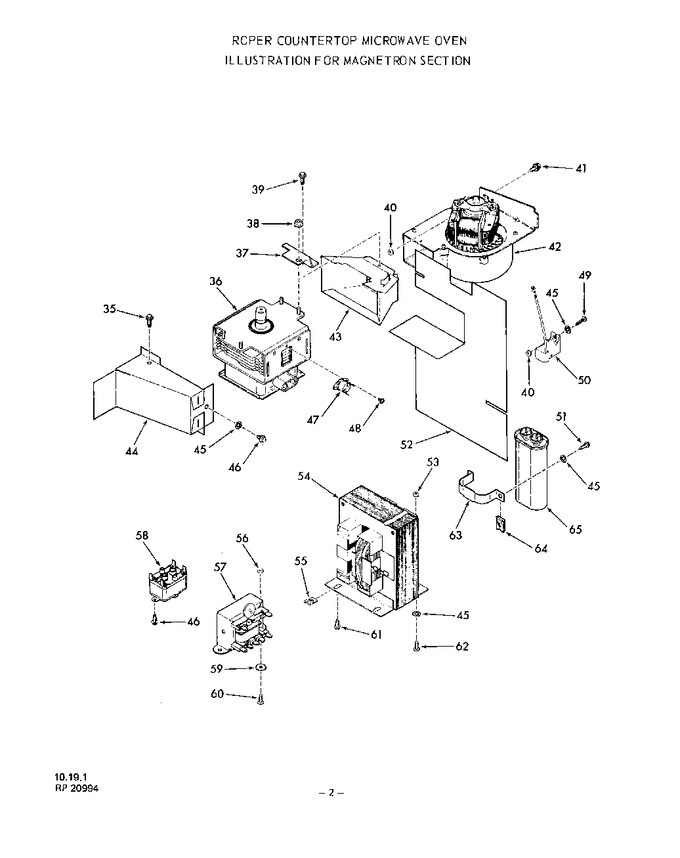

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	295849		Screw 10-32x17/32``xxx		Appelez-nous	-
36	312990		Magnetronxxx (2961000, 2961010)		Appelez-nous	-
36	320525		Magnetronxxx (2961020)		Appelez-nous	-
37	311092		Support-blowerxxx		Appelez-nous	-
38	309503		Flange Nutxxx		Appelez-nous	-
39	315627		Screw 8-32x3/8``		Appelez-nous	-
40	285726		Keps Nut 10-32xxx		Appelez-nous	-
41	306855		Screw 10-32x3/8``xxx		Appelez-nous	-
42	311413		Blower Asm. W/motorxxx		Appelez-nous	-
43	310318		Blower Duct-magnetronxxx (2961000, 2961010)		Appelez-nous	-
43	318416		Blower Duct-magnetronxxx (2961020)		Appelez-nous	-
44	321752		Inlet Duct-cavityxxx (2961020)		Appelez-nous	-
44	315913		Inlet Duct-cavityxxx (2961000, 2961010)		Appelez-nous	-
45	109156		Lockwasher		Appelez-nous	-
46	97217		Screw 8-32x3/8``xxx		Appelez-nous	-
47	313240		Thermostatxxx		Appelez-nous	-
48	309711		Screw 4-40x1/4``		Appelez-nous	-
49	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
50	WP681249		Rectifier-hi Voltage   (Replaces: 312799)			Immediately	$ 7.43
51	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
52	315918		Air Barrier		Appelez-nous	-
53	74056		Keps Nut		Appelez-nous	-
54	319634		Transformer-hi Voltage		Appelez-nous	-
55	310792		Speed Nut		Appelez-nous	-
56	239764		Keps Nut 8-32		Appelez-nous	-
57	318395		Transformer-control		Appelez-nous	-
58	310277		Relay-pwer		Appelez-nous	-
59	235110		Lockwasher				$ 77.56
60	319215		Screw 8-32x3/8``		Appelez-nous	-
61	310793		Screw 10bx1/2``		Appelez-nous	-
62	DE81-05463A		Screw 10-24x1/2``   (Replaces: 103790)				$ 162.34
64	108069		Speed Nut 10 - 32		Appelez-nous	-
65	318793		Capacitor-hi Voltage		Appelez-nous	-
