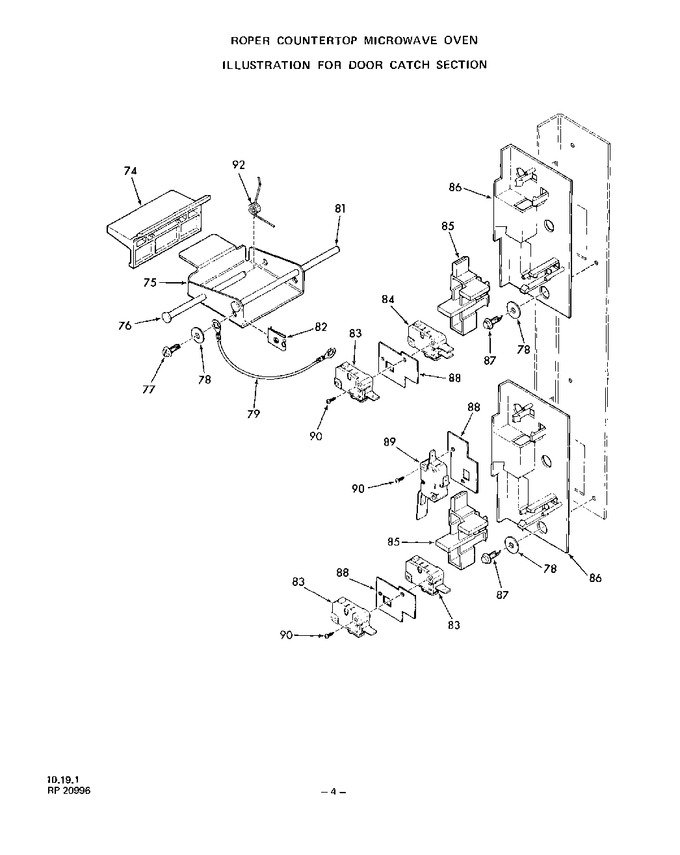

SELECT A DIAGRAM

02 - Control Panel


03 - Magnetron


04 - Door Catch


05 - Oven


06 - Oven Door


07 - Meat Probe And Jack, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
74	315300		Handle-door Releasexxx		Appelez-nous	-
75	315302		Bracke-door Releasexxx		Appelez-nous	-
76	315315		Pin-door Releasexxx		Appelez-nous	-
77	102430		Screw 10 - 32 X 1/2``		Appelez-nous	-
78	99279		Washer		Appelez-nous	-
79	318341		Ground Wirexxx		Appelez-nous	-
81	315315		Pin-door Releasexxx		Appelez-nous	-
82	108069		Speed Nut 10 - 32		Appelez-nous	-
83	304546		Switch-latchxxx		Appelez-nous	-
84	315889		Switch-oven Light		Appelez-nous	-
85	315297		Actuator-swithcxxx		Appelez-nous	-
86	315296		Mounting Bracket-switchxxx		Appelez-nous	-
87	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
88	315915		Insulation-switchxxx		Appelez-nous	-
89	315875		Switch-monitor		Appelez-nous	-
90	318010		Screw 1abx1/4``xxx		Appelez-nous	-
92	319445		Springxxx		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
