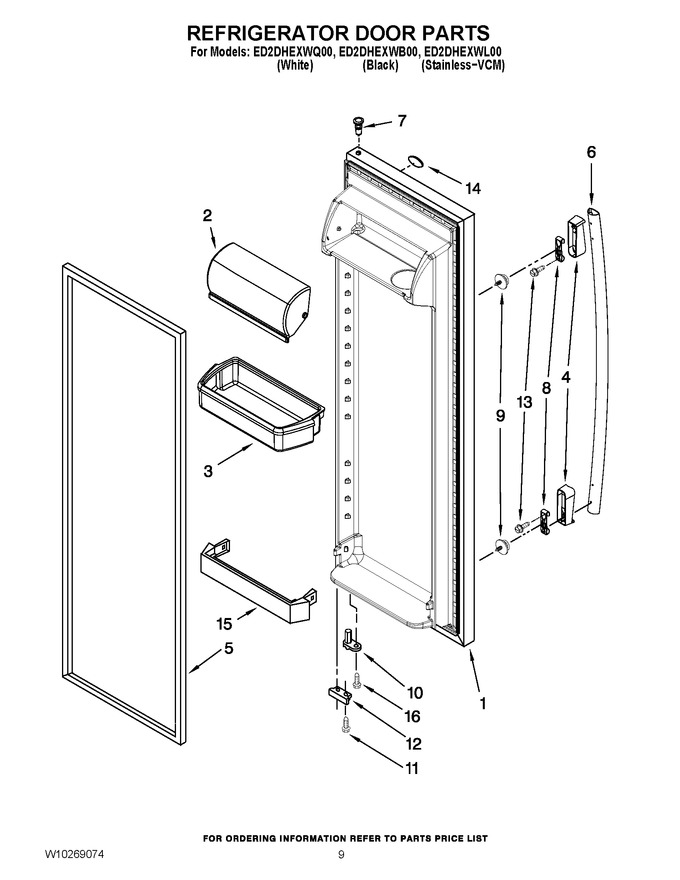

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2219033L | Refrigerator Door (includes Item 5) (stainless Vcm) |
|
- | |||||
| 1 | L2263189B | Refrigerator Door (includes Item 5) (black) (Replaces: 2263189B) |
|
- | |||||
| 1 | W10251923 | Refrigerator Door (includes Item 5) (white) |
|
- | |||||
| 2 | WP2203828 | Door, Compartment (Replaces: 2203828) |
|
$ 95.52 | |||||
| 3 | WP2203828 | Door Bin (3) (Replaces: 2203828) |
|
$ 95.52 | |||||
| 4 | W10127772 | End Cap (apollo Grey) |
|
$ 49.75 | |||||
| 4 | W10127770 | Endcap (black) |
|
- | |||||
| 4 | W10127769 | Endcap (white) |
|
- | |||||
| 5 | 2159081 | Door Gasket, Magnetic (black) (Replaces: 2309653) |
|
$ 319.60 | |||||
| 5 | 2159073 | Door Gasket, Magnetic (mist Beige) (Replaces: 2309600) |
|
$ 317.32 | |||||
| 6 | WPW10127762 | Handle (black) (Replaces: W10127766) |
|
$ 190.65 | |||||
| 6 | WPW10257118K | Handle (stainless) (Replaces: W10257118) |
|
$ 187.61 | |||||
| 6 | WPW10127761K | Handle (white) (Replaces: W10127765) |
|
$ 186.67 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 7.76 | |||||
| 8 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 34.81 | |||||
| 9 | WPW10288153 | Screw, Mounting (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 12 | W10219812 | Bracket, Door Stop (black) |
|
$ 24.48 | |||||
| 12 | W10219811 | Bracket, Door Stop (chrome) |
|
$ 25.43 | |||||
| 13 | WP8533988 | Screw (Replaces: W10155511) |
|
Immediately | $ 7.95 | ||||
| 14 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 88.74 | ||||
| 15 | WP2309941 | Trivet, Shelf (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 16 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 |
