SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

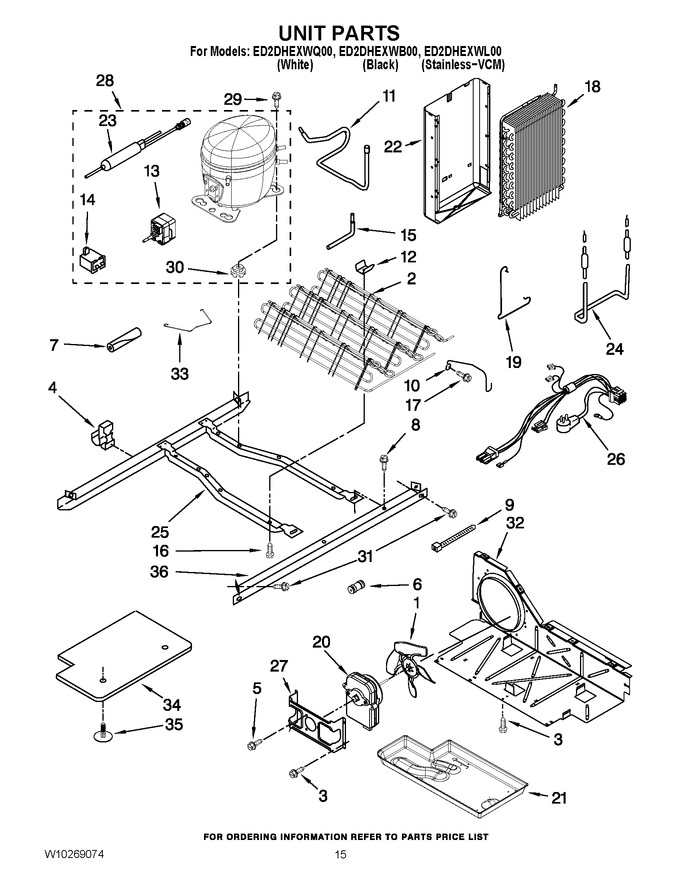

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 23.99
2	2324712		Condenser Assembly   (Replaces: W10222349)				$ 308.05
3	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
4	2208280		Clip, Wire		Appelez-nous	-
5	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
6	WPW10334458		Connector   (Replaces: W10334458)				$ 21.59
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
8	WP489427		Screw   (Replaces: 489427)				$ 7.47
9	WPW10339879		Strap   (Replaces: 2263990)				$ 7.90
10	2260516		Guard, Fan		Appelez-nous	-
11	2220642		Tube Suction				$ 221.59
12	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 18.46
13	WPW10240344		Start Device, Combination (start Relay And Overload) (service)   (Replaces: W10240344)				$ 180.30
13	WP2188831		Start-device, Combination (start Relay And Overload) (production)   (Replaces: 2188831)				$ 177.48
14	WP65889-4		Capacitor (service)   (Replaces: 2252799)			Immediately	$ 61.14
15	2325479		Process Tube		Appelez-nous	-
16	W11544659		Screw   (Replaces: 8281232)				$ 13.67
17	WP489478		Screw   (Replaces: 489478)				$ 7.75
18	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
19	2161324		Clamp		Appelez-nous	-
20	W10124096		Fan, Motor   (Replaces: W10204250)			Immediately	$ 112.20
21	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
22	WPW10194474		Heat Shield   (Replaces: W10194474)				$ 119.53
23	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
23	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
24	WP2323197		Hearter, Defrost   (Replaces: 2188174)			Immediately	$ 117.38
25	2304903		Unit Mounting Frame				$ 233.03
26	W10281341		Unit, Harness (includes Power Cord)				$ 240.86
27	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
28	W10355489		Compressor (includes Items 13, 14, 23 & 30)   (Replaces: W10144769)				$ 646.20
29	876811		Screw   (Replaces: 489373)				$ 7.42
30	W11661108		Grommet (4) (service)   (Replaces: 2183042)				$ 14.49
30	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
31	489340		Screw (5)		Appelez-nous	-
32	W10332806		Air Baffle				$ 102.82
33	2212996		Clip, Retaining   (Replaces: 2255113)				$ 12.11
34	W11115203		Unit Cover, Bottom   (Replaces: 2304898)				$ 517.91
35	489396		Clip				$ 10.72
36	W10207512		Unit Mounting Rail		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access (3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.0oz. (r-134a))		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
