SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

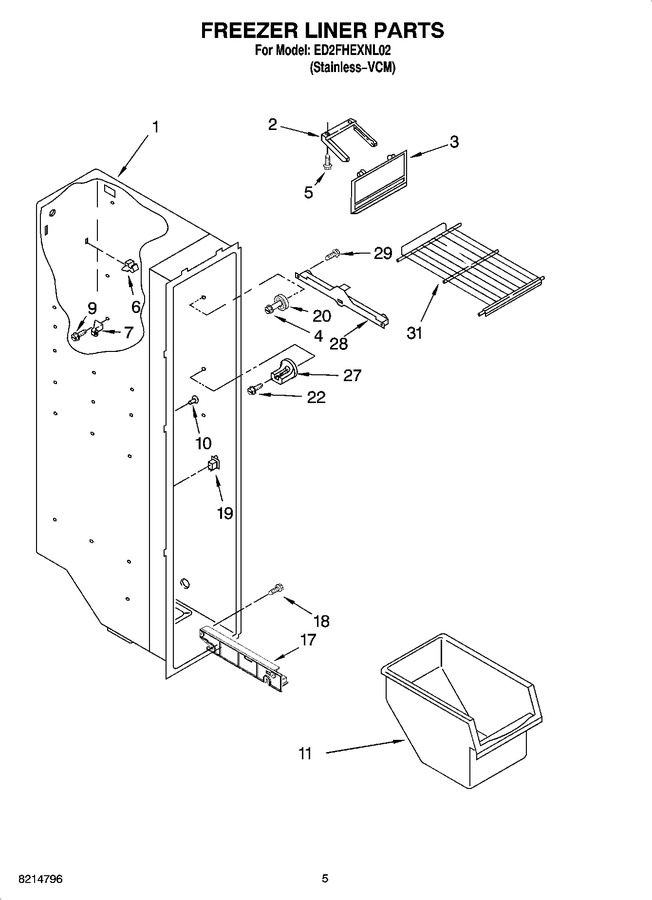

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 69.91
4	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
5	WP489478		Screw (2)   (Replaces: 489478)				$ 8.18
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	2196206		Support, Stud (4)		Appelez-nous	-
9	W10142289		Screw   (Replaces: 3400893)				$ 9.61
10	2176134		Grommet				$ 5.83
11	2216111		Freezer Bin		Appelez-nous	-
17	2261449		Slide, Basket (right Side)				$ 46.07
17	2261448		Slide, Basket (left Side)				$ 46.07
18	W10759522		Screw   (Replaces: 486298)				$ 8.24
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
20	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
22	W10142289		Screw   (Replaces: 3400893)				$ 9.61
27	2196207		Stud, Rear				$ 7.61
28	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
28	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-
31	2174265K		Shelf (2)				$ 38.56
31	WP2174249K		Shelf (1)   (Replaces: 2174249K)				$ 221.75
