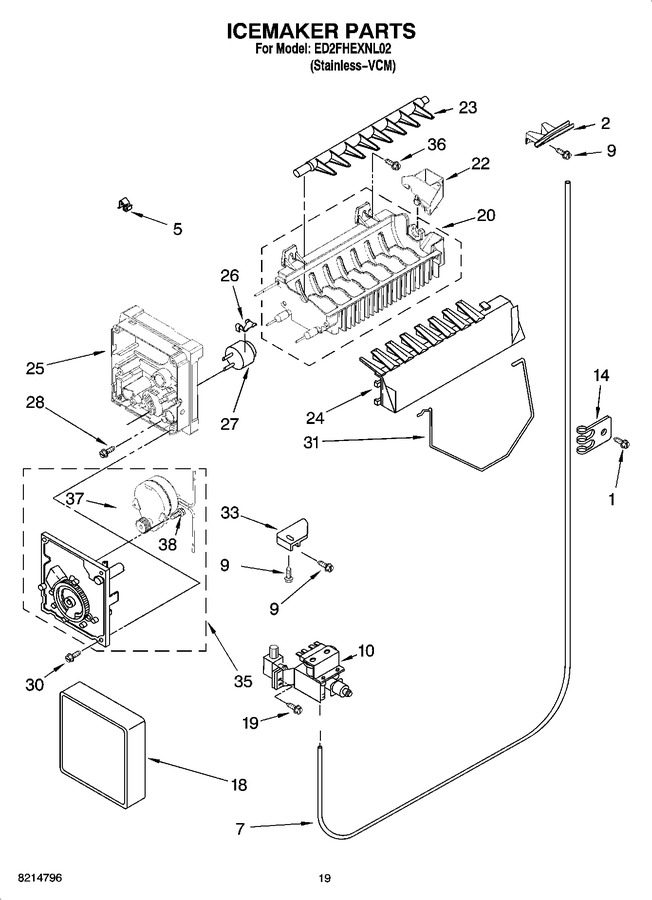

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 35.32 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 7 | W10823511 | Tube Water (Replaces: 2181943) |
|
Immediately | $ 32.41 | ||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 10 | W10408179 | Filter Valve Asm (Replaces: 2304833) |
|
Immediately | $ 96.38 | ||||
| 14 | WP488366 | Tube Clip (Replaces: 489385) |
|
$ 11.92 | |||||
| 18 | WPW10289690 | Cover (Replaces: 2174155) |
|
Immediately | $ 8.82 | ||||
| 19 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 20 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces: 628228) |
|
$ 233.15 | |||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 53.75 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 90.35 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 11.60 | |||||
| 27 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 114.64 | |||||
| 28 | 8533917 | Screw |
|
$ 14.04 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 31 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 63.21 | ||||
| 33 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 35 | 8201515 | Module Assembly (includes Items 37 And 38) (Replaces: 626678) |
|
Immediately | $ 141.64 | ||||
| 36 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 37 | W10190935 | Motor (Replaces: 626676) |
|
Immediately | $ 110.07 | ||||
| 38 | 489136 | Screw |
|
$ 10.80 | |||||
| 100 | WPW10190965 | Complete Icemaker Assembly (Replaces: 626662) |
|
Immediately | $ 105.08 | ||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| 2217192 | Cleaner, (stainless Steel) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 350942 | Primer White |
|
$ 94.14 | ||||||
| 8171357 | Graphite |
|
$ 86.43 | ||||||
| 80051 | Paint, Touch-up (1/2oz.) (graphite) |
|
$ 7.64 | ||||||
| 8171358 | Paint, Bulk (1qt.) (graphite) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 |
