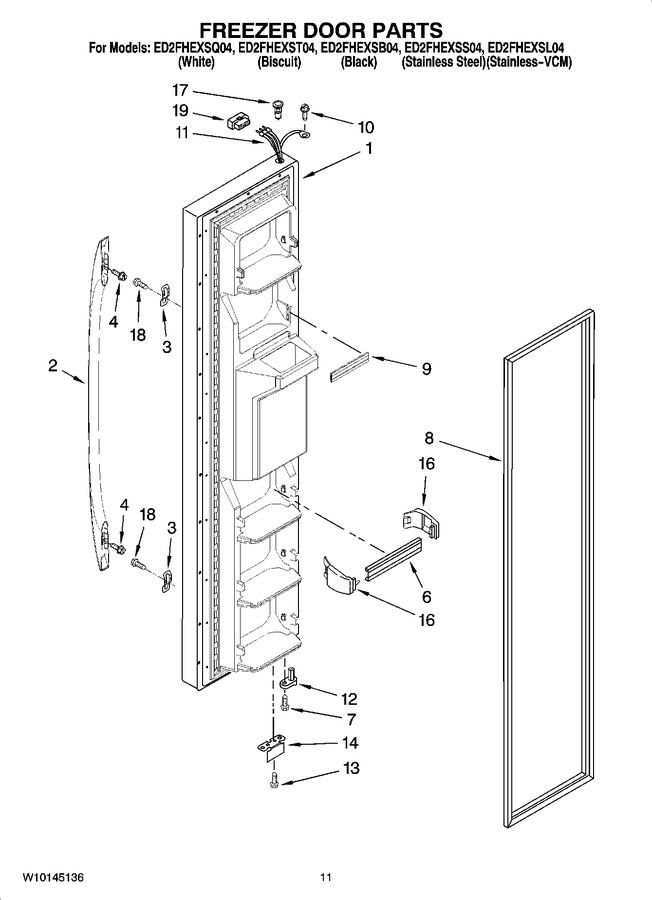

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2315205T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2315205B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2315205S		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2315205LG		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
1	2315205W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2313345W		Handle (white)		Appelez-nous	-
2	W10187087		Handle (biscuit)   (Replaces: 2313345T)		Appelez-nous	-
2	W10187086		Handle (black)   (Replaces: 2313345B)				$ 377.97
3	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
4	8533920		Screw				$ 5.27
6	2313198K		Trim, Door (4)		Appelez-nous	-
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 308.19
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 310.39
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 23.11
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2311642		Wire Harness   (Replaces: 2206602)				$ 217.92
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
16	2195917		End Cap (8)		Appelez-nous	-
17	2301049		Thimble-top (for Stainless Steel Model)				$ 75.42
17	WP2182181		Thimble, Top (for White, Black, Biscuit And Stainless Vcm Models)   (Replaces: 2182181)				$ 7.76
18	WP489491		Screw   (Replaces: 489491)				$ 6.95
19	WP2154473		Connector   (Replaces: 2154473)				$ 23.65

    View Diagram in Separate Window       Print Part List
