SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

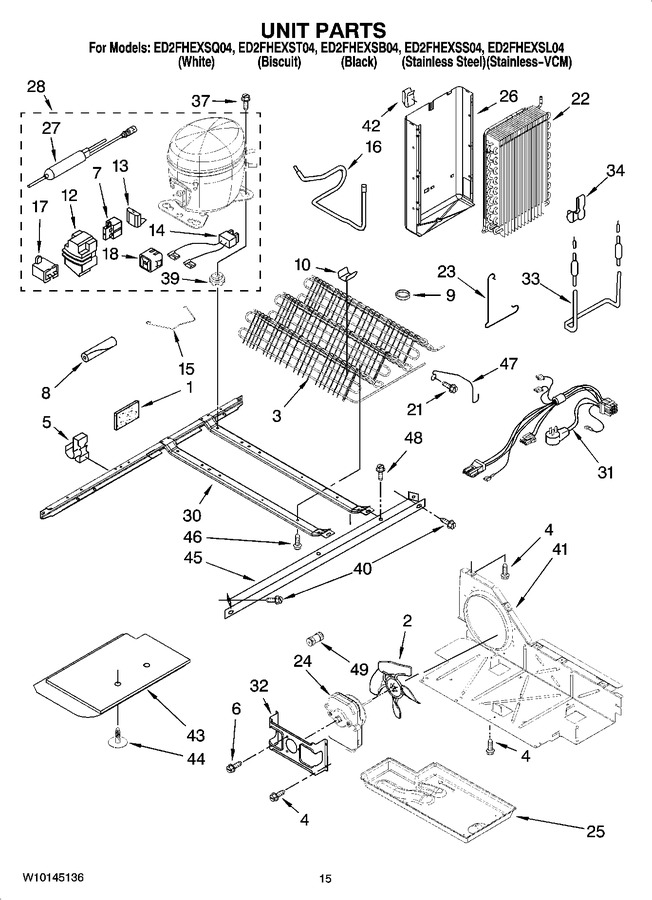

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 14.07
2	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
3	2324712		Condenser Assembly (also Order 9)   (Replaces: W10121487)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2208280		Clip, Wire & Tube		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	2183454		Relay (service Only)		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	W10132427		Bushing, Compressor		Appelez-nous	-
10	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
12	WP2162358		Cover Service Only)   (Replaces: 4387731)				$ 90.75
13	WP2187145		Overload (service Only)   (Replaces: 2187145)				$ 146.59
14	WP2172890		Wire, Capacitor (service Only)   (Replaces: 4387765)				$ 8.10
15	2212996		Strap, Bale   (Replaces: 2255113)				$ 12.11
16	2220642		Tube Suction				$ 221.59
17	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
17	WP65889-4		Capacitor (production)   (Replaces: 2252799)			Immediately	$ 61.14
18	WP2188831		Start-device, Combination (start Relay And Overload) For Production Compressor Only   (Replaces: 2188831)				$ 177.48
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
23	2161324		Clamp		Appelez-nous	-
24	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2217195		Heat Shield		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: 2317845)			Immediately	$ 30.78
28	W10355489		Compressor (includes Items 7, 12, 13, 14, 17 & 27) (also Order 876765 Tube Kit)   (Replaces: W10120462)				$ 646.20
30	2304903		Unit Mounting Frame				$ 233.03
31	WPW10309395		Unit, Harness   (Replaces: 2187783)				$ 293.67
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
33	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 117.38
34	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.42
39	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	W11115203		Unit Cover, Bottom   (Replaces: 2304898)				$ 517.91
44	489396		Clip				$ 10.72
45	2149718		Unit Mounting Rail		Appelez-nous	-
46	W11544659		Screw   (Replaces: 8281232)				$ 13.67
47	2260516		Guard, Fan		Appelez-nous	-
48	WP489427		Screw   (Replaces: 489427)				$ 7.47
49	978028		Valve, Access (1/2)		Appelez-nous	-
49	978029		Valve Access (5/8``)				$ 93.85
49	978030		Valve, Access (3/4``)				$ 130.71
49	876764		Valve, Access(3/16``)			Immediately	$ 91.35
49	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
49	WPW10334458		Connector, Water Tube   (Replaces: 2320322)				$ 21.59
49	978026		Valve, Access (5/16``)			Immediately	$ 128.09
49	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
