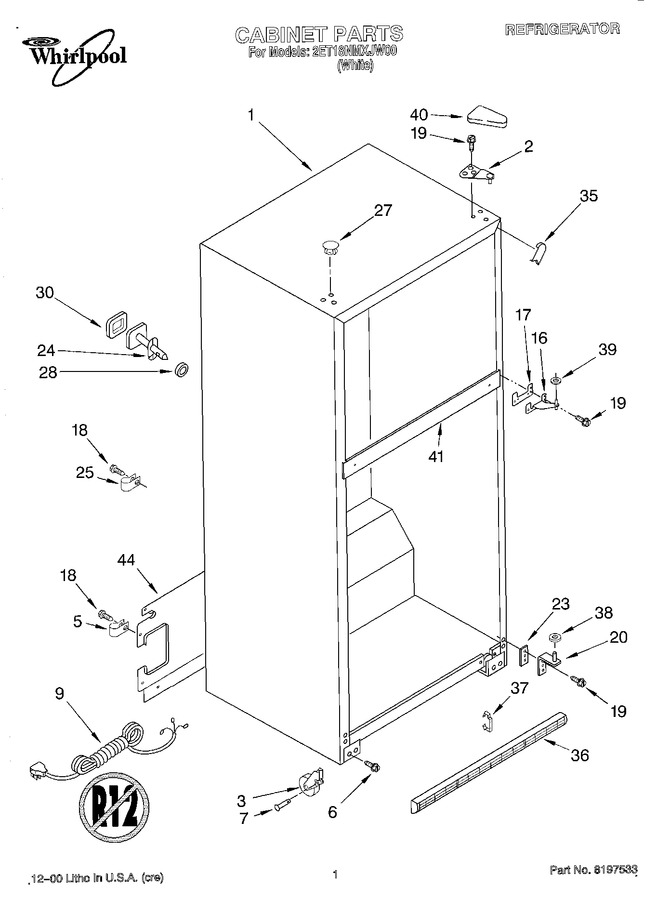

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Ice Maker


06 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.92
6	WP3400504		Screw   (Replaces: 3400504)				$ 7.55
7	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 19.12
9	2205329		Service Cord		Appelez-nous	-
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 92.02
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 11.43
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
19	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
20	WP2254473		Hinge Butt   (Replaces: 2189194)				$ 9.28
23	2172743		Shim, Bottom Hinge				$ 33.55
24	N/A		Fitting, Water Tube (not Serviced)		Appelez-nous	-
25	489348		Clamp		Appelez-nous	-
27	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 22.87
28	N/A		Seal, Front (not Serviced)		Appelez-nous	-
30	N/A		Seal, Rear (not Serviced)		Appelez-nous	-
35	WPW10283959		Corner Filler (2)   (Replaces: 2201014)				$ 8.21
36	WP2254386		Grille   (Replaces: 2201009)				$ 99.26
37	2189356		Clip-grille				$ 5.70
38	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
39	WP489467		Washer   (Replaces: 489341)			Immediately	$ 11.42
40	WP2213360		Cover-hinge   (Replaces: 2160403)				$ 20.19
41	N/A		Rail Center (not Serviced)		Appelez-nous	-
43	2200777		Insulation		Appelez-nous	-
44	2254582		Cover, Unit   (Replaces: 2200507)				$ 134.73
