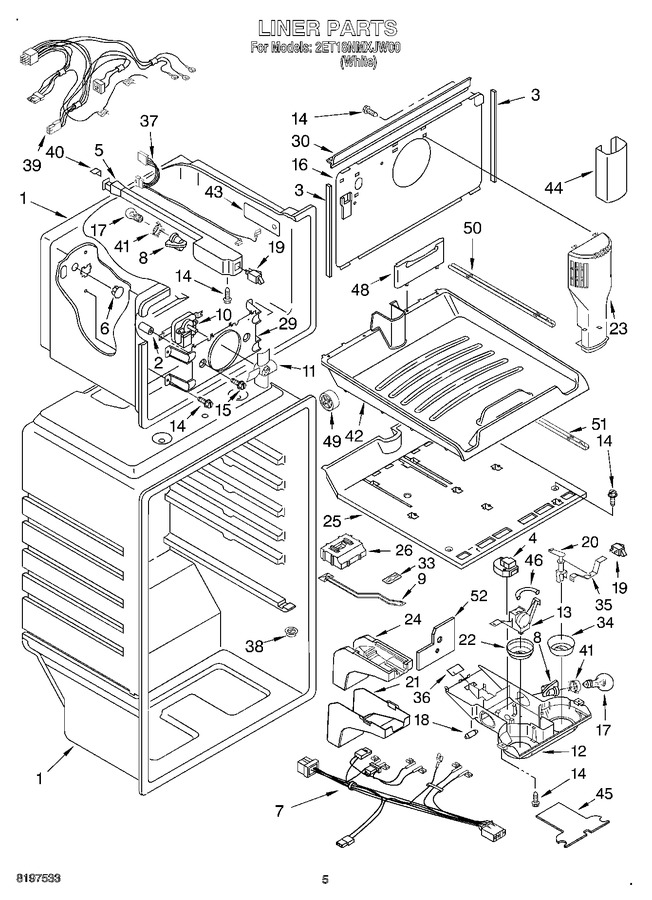

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
3	WP2254360		Gasket, Evaporator Cover (side)   (Replaces: 2189268)				$ 26.78
4	WP2321259		Timer, Defrost   (Replaces: 2187236)				$ 155.96
5	2182382		Housing Base		Appelez-nous	-
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
7	2200632		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 110.16
9	2179858		Damper, Air		Appelez-nous	-
10	2201150		Fan Motor				$ 98.34
11	WP2163777		Fan Blade   (Replaces: 2200509)			Immediately	$ 66.15
12	2200820		Control Box		Appelez-nous	-
13	2210378		Thermostat Assy. (includes Items 5, 18 & 36)		Appelez-nous	-
14	WP489478		Screw   (Replaces: 489478)				$ 7.75
15	489412		Screw		Appelez-nous	-
16	2201173		Cover-evaporator		Appelez-nous	-
17	WP67002552		Light Bulb (2)   (Replaces: 851682)			Immediately	$ 11.75
18	2200831		Weight, Thermal		Appelez-nous	-
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 37.23
20	2179859		Post, Damper		Appelez-nous	-
21	2176281		Cover, Air Diffuser				$ 41.64
22	W10829461		Knob, Thermostat   (Replaces: 2200863)				$ 30.39
23	2182340		Air Tower				$ 43.02
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2189452)			Immediately	$ 124.79
25	2204746		Freezer Floor		Appelez-nous	-
26	2210455		Air Diffuser, Top		Appelez-nous	-
29	2200511		Bracket, Fan Motor		Appelez-nous	-
30	WP2254360		Gasket, Evaporator Cover (top)   (Replaces: 2189267)				$ 26.78
33	2176341		Clip, Defrost Timer		Appelez-nous	-
34	2176297		Knob, Damper		Appelez-nous	-
35	2163810		Bracket, Damper Knob				$ 6.01
36	WP2205079		Seal, Rearthermostat   (Replaces: 2205079)				$ 9.53
37	2187281		Wiring Harness, Freezer Light		Appelez-nous	-
38	WP2210509		Release Valve   (Replaces: 2171931)				$ 94.43
39	2187297		Wire Assembly, Freezer Compartment		Appelez-nous	-
40	2166284		Gasket, Rear				$ 6.06
41	WP2175210		Shroud   (Replaces: 2175210)				$ 82.61
42	2189429		Pullout, Freezer Floor		Appelez-nous	-
43	2193491		Electric Shield				$ 5.81
44	2179712		Sleeve		Appelez-nous	-
45	2201082		Shield		Appelez-nous	-
46	2212485		Thermostat Tube Barrier				$ 5.92
48	2198768		Rear Fence				$ 35.55
49	2176246		Roller, Slide		Appelez-nous	-
50	2179713		Side Support		Appelez-nous	-
51	2179714		Center Support		Appelez-nous	-
52	2204639		Shield, Heat		Appelez-nous	-
