Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2194281 Shelf Assembly, Cantilever (2) Appelez-nous -
2 W10508993 Cover, Crisper   (Replaces: 2209698) Special Order $ 291.29

3 W10864399 Glass, Cover   (Replaces: 2179259) Special Order $ 220.98

4 2179350 Deflector Special Order $ 81.80

5 2217039 Cover, Meat Pan Appelez-nous -
6 WP2188661 Crisper Pan   (Replaces: 2196481) In-Stock Immediately $ 162.07

7 WP2188664 Meat Pan   (Replaces: 2196480) In-Stock Immediately $ 85.30

11 WP2196483 Shelf Assembly   (Replaces: 2196483) Special Order $ 10.35

12 W11223328 Stud Assembly   (Replaces: 2196485) In-Stock Immediately $ 14.07

13 W10864399 Glass, Cover   (Replaces: 2174150) Special Order $ 220.98

14 WP3-24004-109 Screw   (Replaces: 3400894) Special Order $ 8.05

17 WP3400806 Screw   (Replaces: 8281158) Special Order $ 7.71


    View Diagram in Separate Window     Print Icon   Print Part List

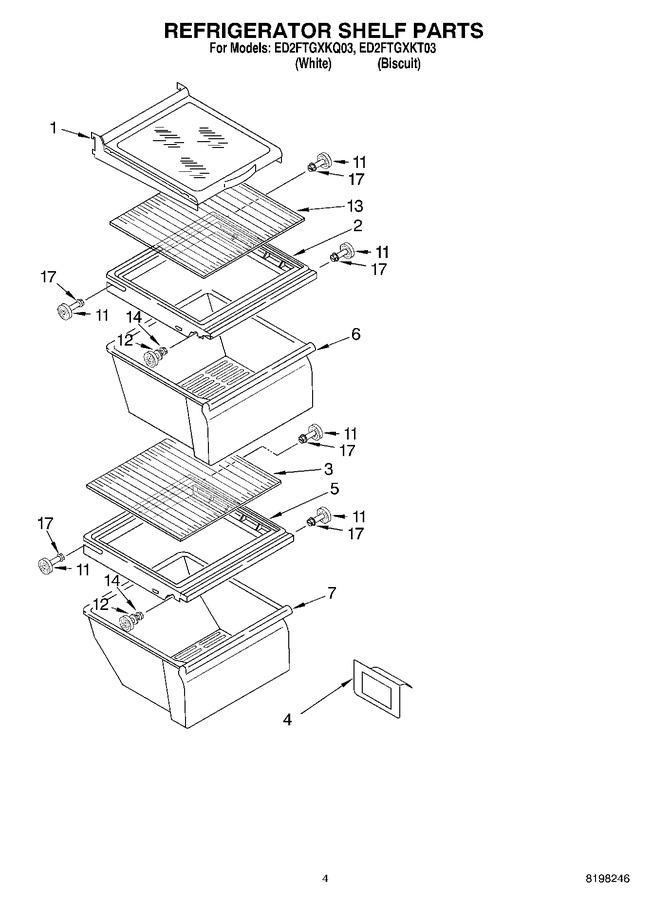

Diagram for ED2FTGXKQ03
