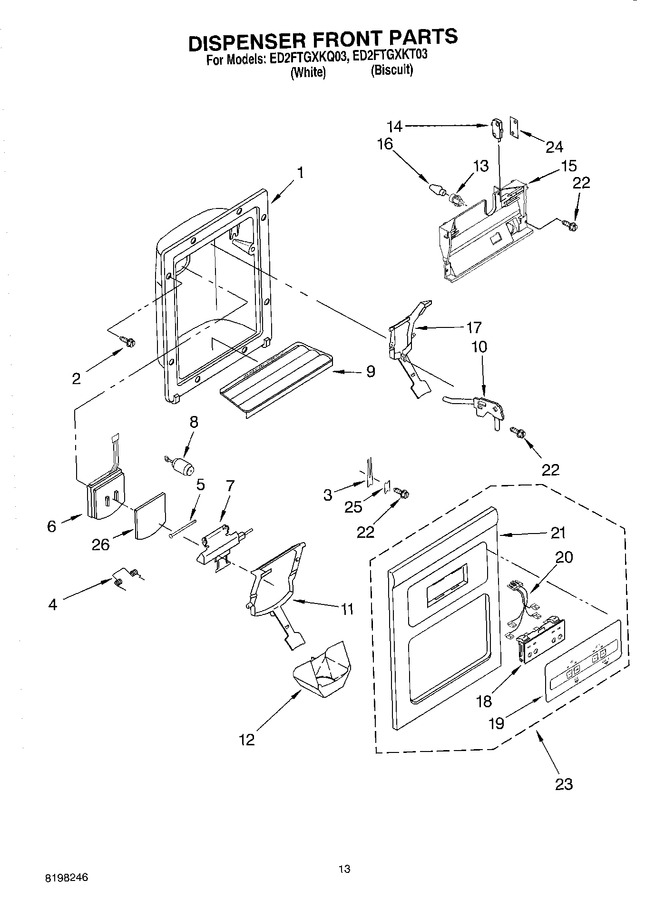

08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.77
4	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 83.24
5	WP2196195		Pin   (Replaces: 2196195)				$ 14.58
6	WP2180353		Door, Ice   (Replaces: 2180352)			Immediately	$ 24.69
7	2206423		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	2206671T		Grille, Overflow (biscuit)				$ 27.69
9	WP2206671W		Grille, Overflow (white)   (Replaces: 2206671W)				$ 68.73
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2209718)				$ 134.13
11	2195089T		Lever, Ice Dispenser (biscuit)				$ 51.43
11	2195089W		Lever, Ice Dispenser (white)		Appelez-nous	-
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.63
13	2180200		Lamp Holder				$ 98.66
14	WP2162361		Switch   (Replaces: 2162361)			Immediately	$ 27.34
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 24.39
16	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 13.66
17	WPW10152858		Lever, Water Dispenser (almond)   (Replaces: 2195090N)				$ 104.60
17	WPW10152858		Lever, Water Dispenser (white)   (Replaces: 2195090W)				$ 104.60
18	N/A		Switch Assembly (not Available, Order No.23)		Appelez-nous	-
19	N/A		Overlay, Front Cover (not Available, Order No.23)		Appelez-nous	-
20	2187408		Wire Assembly		Appelez-nous	-
21	N/A		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	WP3400906		Screw   (Replaces: 489000)				$ 7.84
23	2207260W		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)		Appelez-nous	-
23	2207260T		Front Cover Assembly (includes Items 18, 19, 20 & 21) (biscuit)		Appelez-nous	-
24	625834		Spacer, Switch (2)				$ 7.99
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.67
26	987121		Shield, Ice Door				$ 5.91
