SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Refrigerator Door Parts

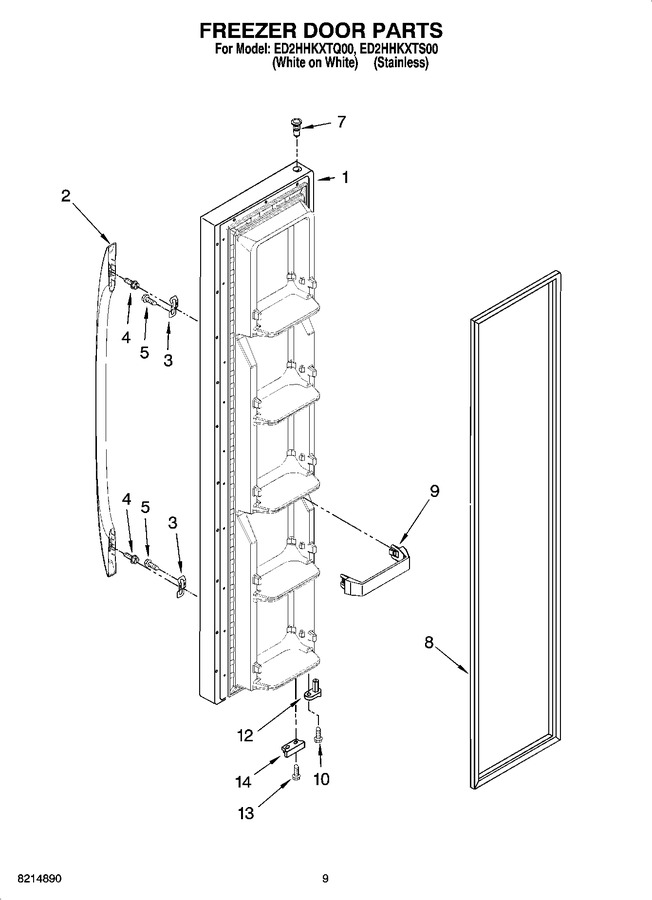

07 - Freezer Door Parts


08 - Unit Parts


09 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2311661S		Freezer Door (includes Item 8) (stainless)		Appelez-nous	-
1	2311661W		Freezer Door (includes Item 8) (white)		Appelez-nous	-
2	2313345W		Handle (includes 4) (white)		Appelez-nous	-
3	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
4	8533920		Screw				$ 5.27
5	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
7	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
8	2159080		Door Gasket, Magnetic (service) (black)   (Replaces: 2309654)				$ 310.39
8	2159072		Door Gasket, Magnetic (service) (mist Beige)   (Replaces: 2309604)				$ 308.19
9	WP2309717		Trivet (5)   (Replaces: 2309717)				$ 55.85
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
14	WP2206629B		Bracket, Door Stop (white)   (Replaces: 2206629)				$ 40.03

    View Diagram in Separate Window       Print Part List
