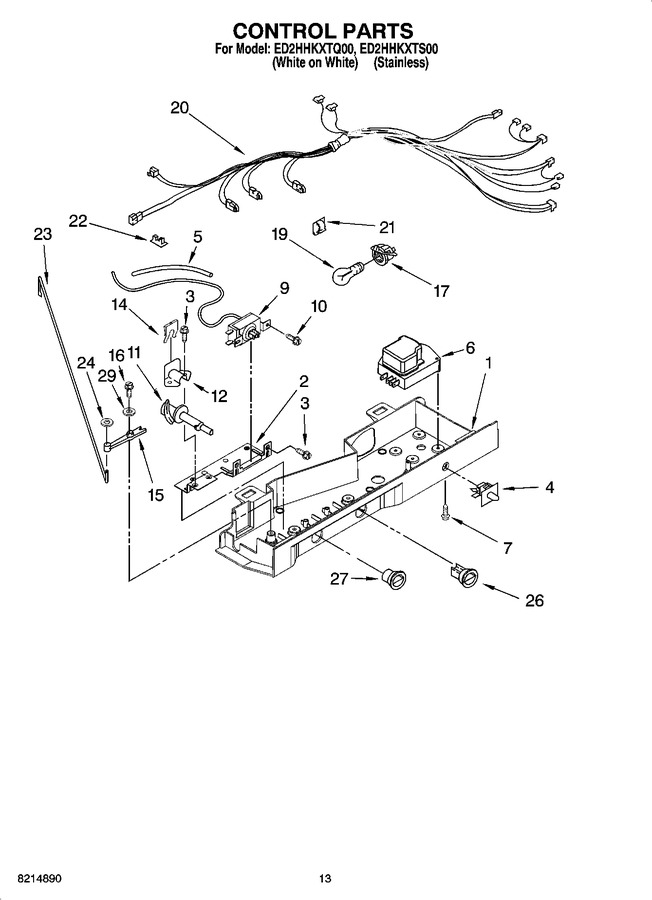

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2311619 | Control Box |
|
- | |||||
| 2 | 2311611 | Mounting Bracket |
|
- | |||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 4 | WP2149705 | Light Switch (Replaces: 2149705) |
|
Immediately | $ 40.40 | ||||
| 5 | WP2196003 | Tube Barrier (Replaces: 2196001) |
|
$ 7.95 | |||||
| 6 | W10822278 | Defrost Timer (Replaces: 2188375) |
|
Immediately | $ 34.44 | ||||
| 7 | 489392 | Screw (2) (Replaces: 489398) |
|
$ 13.35 | |||||
| 9 | WP2198202 | Thermostat (Replaces: 2198202) |
|
Immediately | $ 78.43 | ||||
| 10 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 10.72 | ||||
| 11 | WP2182195 | Cam Assembly (Replaces: 2182195) |
|
$ 5.13 | |||||
| 12 | 1110560 | Bearing Body |
|
$ 10.76 | |||||
| 14 | WP2196062 | Clip, Damper Control (Replaces: 2196062) |
|
$ 10.71 | |||||
| 15 | 1110559 | Pivot Arm |
|
$ 8.35 | |||||
| 16 | 627068 | Screw |
|
$ 12.12 | |||||
| 17 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 19 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 20 | 2311636 | Control Box Harness |
|
- | |||||
| 21 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 7.75 | |||||
| 22 | 1115375 | Clip, Wiring |
|
$ 11.15 | |||||
| 23 | 2311631 | Connecting Rod |
|
- | |||||
| 24 | 489285 | Fastener, Push-on |
|
- | |||||
| 26 | W10723843 | Thermostat Knob (Replaces: 2311614) |
|
$ 26.59 | |||||
| 27 | 2311615 | Knob, Air Control |
|
$ 49.77 | |||||
| 29 | 489203 | Spring Washer |
|
- | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.07 | ||||||
| 2217192 | Cleaner, (stainless Steel) |
|
- | ||||||
| W11729596 | Field Installable Ice Maker (eckmf94) (Replaces: 2155469) |
|
Immediately | $ 150.98 | |||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 89.66 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 |
