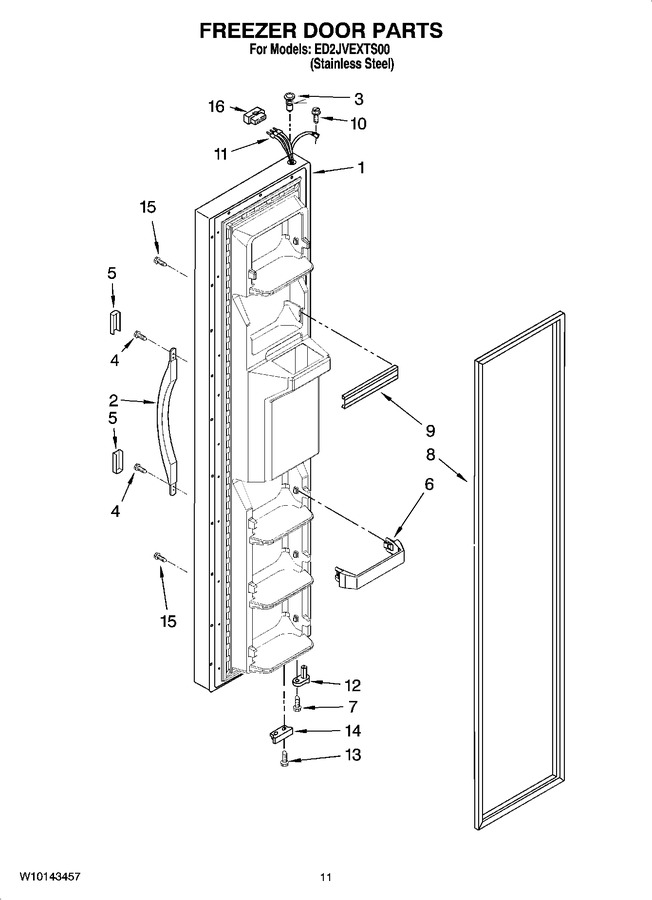

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2328569S		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	2186649B		Handle (black)				$ 72.96
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	2193353B		Endcap, Handle				$ 5.85
6	WP2309717		Trivet (4)   (Replaces: 2309717)				$ 58.64
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2309654)				$ 325.91
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2311642		Wire Harness				$ 228.82
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
15	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
16	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
