01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)

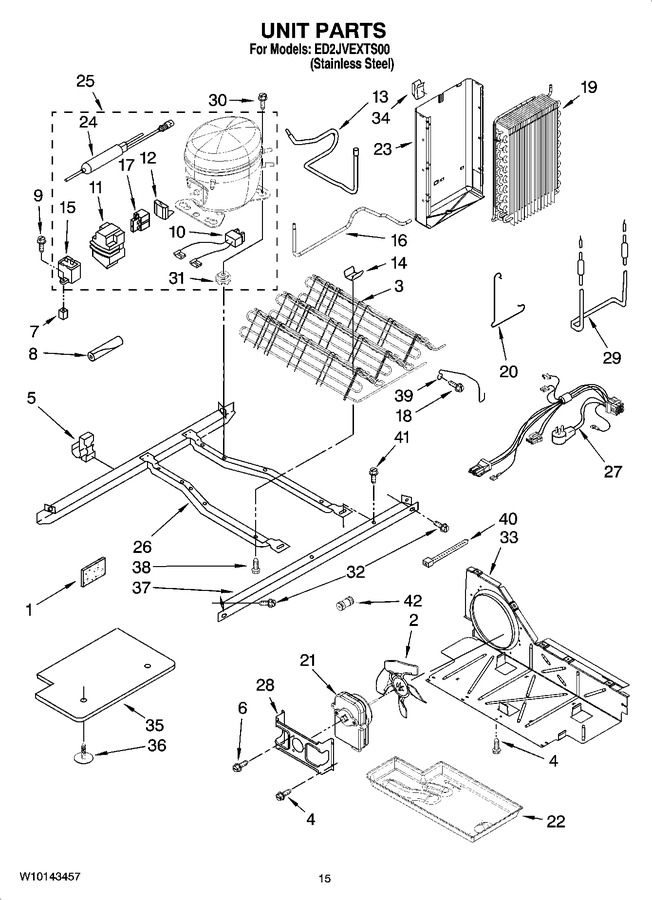

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 14.77
2	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 25.19
3	2324712		Condenser Assembly   (Replaces: 2304902)				$ 323.45
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	2208280		Clip, Wire & Tube		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
7	509812		Grommet		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
10	2325306		Wire, Capacitor (production)		Appelez-nous	-
10	WP2172890		Wire, Capacitor (service)   (Replaces: 4387765)				$ 8.51
11	2217635		Cover, Terminal (production)		Appelez-nous	-
11	WP2162358		Cover Terminal (service)   (Replaces: 4387731)				$ 95.29
12	WP2187145		Overload (service)   (Replaces: 2187145)				$ 153.92
12	2162216		Overload (production)				$ 158.83
13	2220642		Tube Suction				$ 232.67
14	W10683556		Clip, Condenser (2)   (Replaces: 2311725)				$ 19.38
15	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
15	WP65889-4		Capacitor (production)   (Replaces: 2255130)			Immediately	$ 61.14
16	2261599		Tube, Condenser To Heat Loop				$ 243.67
17	WP10097204		Relay (production)   (Replaces: 2262182)				$ 137.72
17	2183454		Relay (service)		Appelez-nous	-
18	WP489478		Screw   (Replaces: 489478)				$ 8.18
19	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 356.84
20	2161324		Clamp		Appelez-nous	-
21	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
22	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
23	2217195		Heat Shield		Appelez-nous	-
24	W10843121		Drier (production)   (Replaces: 2319825)			Immediately	$ 57.13
24	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
25	W10309990		Compressor (includes Items 10, 11, 12, 15, 17 & 24) (also Order 876765 Tube Kit)   (Replaces: 2255011)			Immediately	$ 632.81
26	2304903		Unit Mounting Frame				$ 244.68
27	2325300		Unit, Harness (includes Power Cord)		Appelez-nous	-
28	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.93
29	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 123.25
30	876811		Screw (4)   (Replaces: 489373)				$ 7.79
31	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.79
31	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 7.30
32	489340		Screw (5)		Appelez-nous	-
33	W10896764		Air Baffle   (Replaces: 2196202)				$ 101.20
34	2155547		Clip, Heat Shield		Appelez-nous	-
35	W11115203		Unit Cover, Bottom   (Replaces: 2304898)				$ 543.81
36	489396		Clip				$ 11.26
37	2149718		Unit Mounting Rail		Appelez-nous	-
38	W11544659		Screw   (Replaces: 8281232)				$ 14.35
39	2260516		Guard, Fan		Appelez-nous	-
40	WPW10339879		Strap   (Replaces: 2263990)				$ 8.30
41	WP489427		Screw   (Replaces: 489427)				$ 7.84
42	978028		Valve, Access (1/2)		Appelez-nous	-
42	978029		Valve Access (5/8``)				$ 93.85
42	978030		Valve, Access (3/4``)				$ 137.25
42	876764		Valve, Access(3/16``)			Immediately	$ 95.92
42	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
42	WP4373559		Union   (Replaces: 2209709)				$ 81.22
42	978026		Valve, Access (5/16``)			Immediately	$ 134.49
42	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
