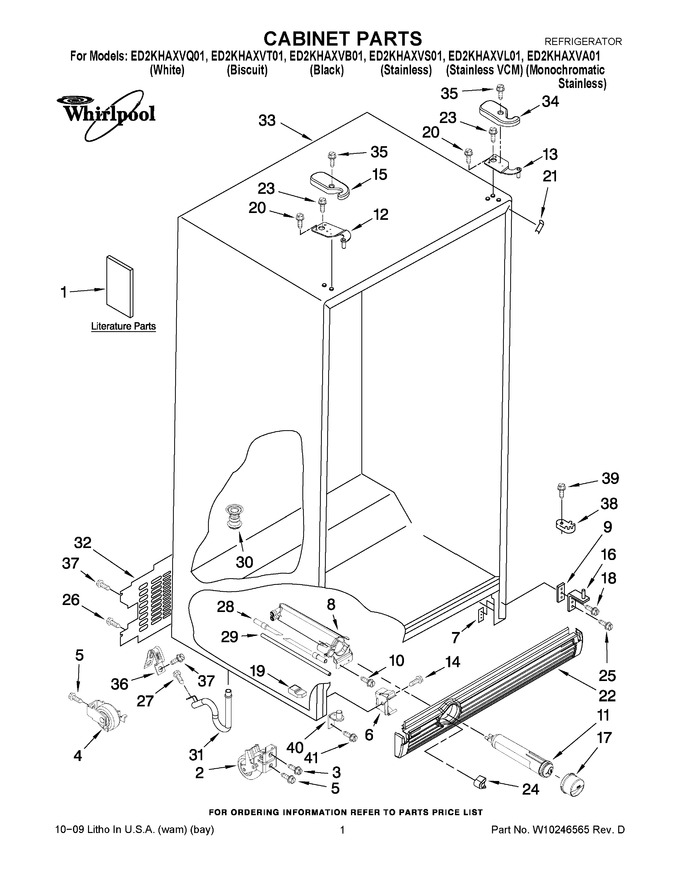

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167096		Use & Care Guide		Appelez-nous	-
1	W10205540		Service & Wiring Sheet		Appelez-nous	-
1	2326836		Energy Label		Appelez-nous	-
1	W10180407		Instruction Sheet, Door Removal		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP2304249		Plate, Screw   (Replaces: 2304249)				$ 14.23
8	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 112.91
9	2209697		Shim				$ 41.25
10	WP489500		Screw (2)   (Replaces: 489500)				$ 7.78
11	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
12	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
13	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
14	WP489128		Screw   (Replaces: 488500)				$ 10.88
15	W10138579		Hinge Cover (apollo Grey)				$ 35.68
15	W10138577		Hinge Cover (black)				$ 34.45
15	W10138578		Hinge Cover (biscuit)		Appelez-nous	-
15	W10138576		Hinge Cover (white)		Appelez-nous	-
16	8201707		Bottom Hinge (rc)   (Replaces: 2217075)				$ 88.90
17	2260502T		Cap, Water Filter (biscuit)		Appelez-nous	-
17	WP2260518MG		Cap, Water Filter (midnight Grey)   (Replaces: 2260502MG)				$ 56.03
17	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
17	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
18	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 29.09
19	2260519		Block, Housing Support		Appelez-nous	-
20	3400858		Screw		Appelez-nous	-
21	WPW10283959		Filler, Wrapper (white)   (Replaces: 2201014)				$ 7.82
21	W10283958		Filler Wrapper (biscuit)   (Replaces: 2200926)				$ 24.41
21	W11252732		Filler, Wrapper (black)   (Replaces: 2201017)				$ 12.45
21	W10851579		Filler, Wrapper (grey)   (Replaces: 2254507)			Immediately	$ 7.19
22	W10184882		Grille (midnight Grey)		Appelez-nous	-
22	WPW10283955		Grille (white)   (Replaces: W10184869)				$ 119.15
22	W10184881		Grille (biscuit)		Appelez-nous	-
22	W10184880		Grille (black)				$ 58.21
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
24	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
24	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
24	WP2260503B		Button, Water Filter (biscuit)   (Replaces: 2260503T)				$ 72.78
24	2260503MG		Button, Water Filter (midnight Grey)				$ 27.01
25	W10856122		Screw (2)   (Replaces: 3400103)				$ 7.76
26	WP488488		Screw   (Replaces: 489290)				$ 7.68
27	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
28	8201597		Tube, Filter Inlet   (Replaces: 2319867)			Immediately	$ 77.02
29	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
30	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
31	W11512417		Extension Tube   (Replaces: 2304937)				$ 34.79
32	WP2188756		Cover, Unit   (Replaces: 2188734)				$ 141.67
33	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
34	W10138581		Hinge Cover (white)		Appelez-nous	-
34	W10138583		Hinge Cover (biscuit)		Appelez-nous	-
34	W10138582		Hinge Cover (black)				$ 34.30
34	W10138584		Hinge Cover (apollo Grey)				$ 15.17
35	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
36	549193		Clamp-service Cord				$ 13.39
37	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
38	WPW10329686		Door Closer (rc) Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
39	WP489483		Screw (2)   (Replaces: 489483)				$ 10.87
40	2323833		Bottom Hinge (fc)		Appelez-nous	-
41	W11778262		Door Closer, Fc   (Replaces: 2223751)				$ 11.08
