Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not Aseviceable Part) Appelez-nous -
2 WPW10318953 Shelf, Wire   (Replaces: 2309634) In-Stock Immediately $ 83.58

3 WP2198641 Bracket, Cover   (Replaces: 2198641) Special Order $ 7.19

4 2303234 Shield, Wiring Appelez-nous -
5 WPW10318960 Shelf, Wire   (Replaces: 2312040) In-Stock Immediately $ 90.12

6 WP2309758 Freezer Bin   (Replaces: 2309758) In-Stock Immediately $ 124.47

7 WPW10130299 Cup, Shelf (16)   (Replaces: W10130299) In-Stock Immediately $ 14.00

8 2212376 Light Lens Special Order $ 91.18

9 W11629974 P.c. Board, Receiver   (Replaces: W10193666) In-Stock Immediately $ 401.07

10 WPW10318952 Shelf Wire   (Replaces: 2309633) In-Stock Immediately $ 88.08

11 WP2198643 Lens   (Replaces: 2198643) Special Order $ 8.18

12 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 10.42

13 WP2198587 Cover, Emitter   (Replaces: 2198587) Special Order $ 105.55

14 WP2198635 Spring   (Replaces: 2198635) Special Order $ 87.08

15 WP2198634 Pin   (Replaces: 2198634) Special Order $ 17.76

16 W11457217 Switch, Rocker Arm   (Replaces: 1115373) Special Order $ 38.18

17 W11629974 P.c. Board Emitter   (Replaces: 2220398) In-Stock Immediately $ 401.07

18 W10180062 Cover, Ice Maker Special Order $ 72.56

19 2212321 Slide, Ice Maker Mounting Special Order $ 67.14

20 WP489478 Screw   (Replaces: 489478) Special Order $ 7.75

21 2006254 Screw   (Replaces: 489214) Special Order $ 13.13

22 4387478 Light Socket   (Replaces: 2162085) In-Stock Immediately $ 110.16

23 W11679940 Light Bulb   (Replaces: W10194422) In-Stock Immediately $ 11.30

24 WPW10142283 Screw   (Replaces: 8281185) Special Order $ 9.84

25 WP2198633 Flipper   (Replaces: 2198633) In-Stock Immediately $ 48.27

26 W10173569 Cover, Receiver Special Order $ 66.93

27 2315398 Slide, Ice Maker Shut Off Special Order $ 10.90

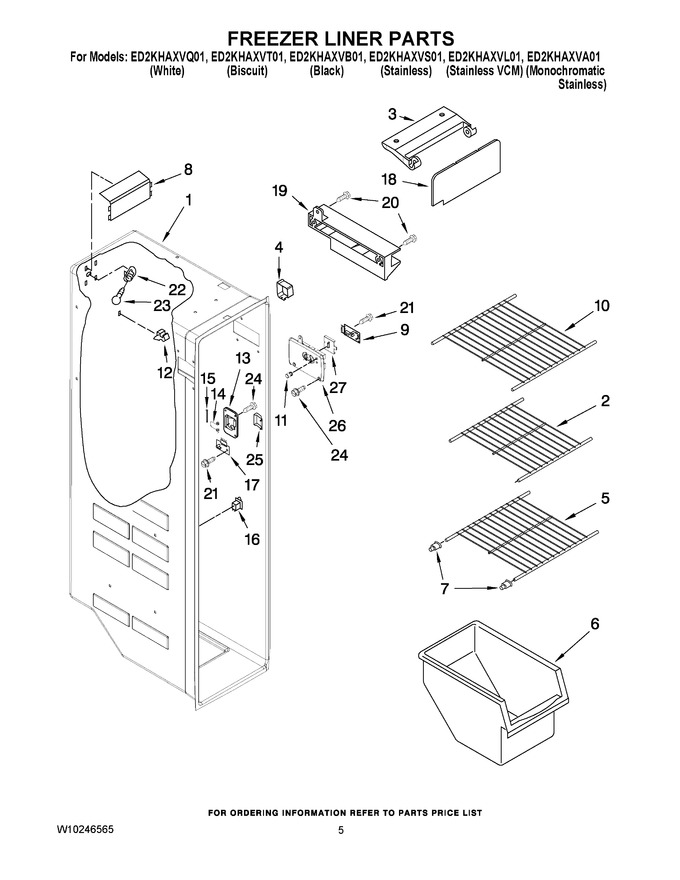

    View Diagram in Separate Window     Print Icon   Print Part List
