SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner

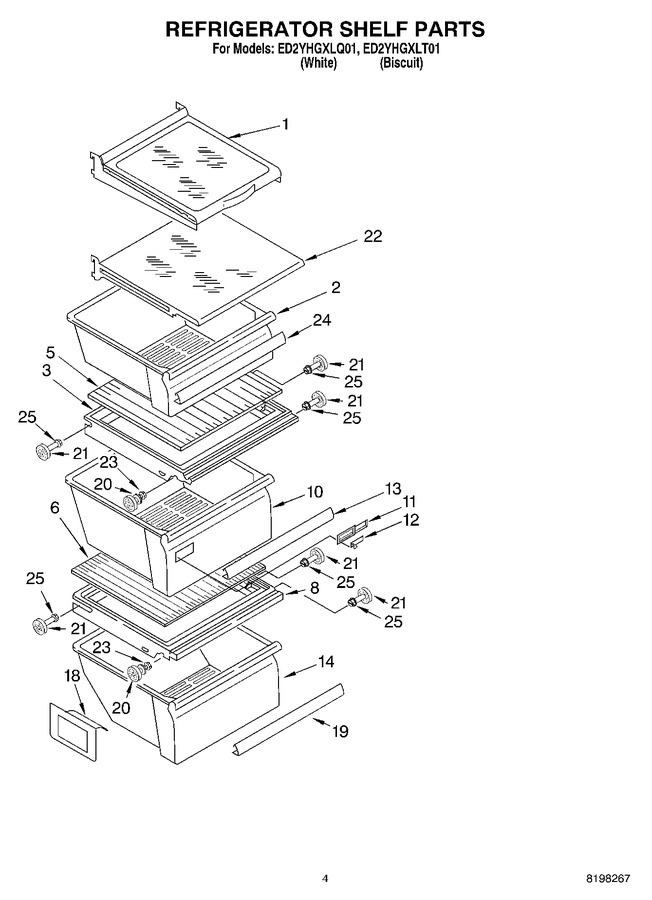

03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194281		Shelf Assembly, Glass (2)		Appelez-nous	-
2	W11497323		Snack Bin   (Replaces: 2196233)				$ 223.66
3	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 291.29
5	W10864399		Glass, Cover   (Replaces: 2174150)				$ 220.98
6	W10864399		Glass, Cover   (Replaces: 2179259)				$ 220.98
8	2217039		Cover, Meat Pan		Appelez-nous	-
10	WP2188656		Crisper Pan   (Replaces: 2196232)				$ 136.40
11	WP2179343		Front, Crisper Pan   (Replaces: 2179343)				$ 32.40
12	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 29.14
13	WP2179234		Trim, Handle   (Replaces: 2194913)				$ 84.35
14	WP2188664		Meat Pan   (Replaces: 2196231)			Immediately	$ 85.30
18	2179350		Deflector				$ 81.80
19	WP2179234		Trim, Handle   (Replaces: 2194906)				$ 84.35
20	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.07
21	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
22	2206347		Shelf, Snack Bin		Appelez-nous	-
23	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
24	WP2179243		Trim, Handle   (Replaces: 2179243)				$ 104.43
25	WP3400806		Screw   (Replaces: 8281158)				$ 7.71

    View Diagram in Separate Window       Print Part List
