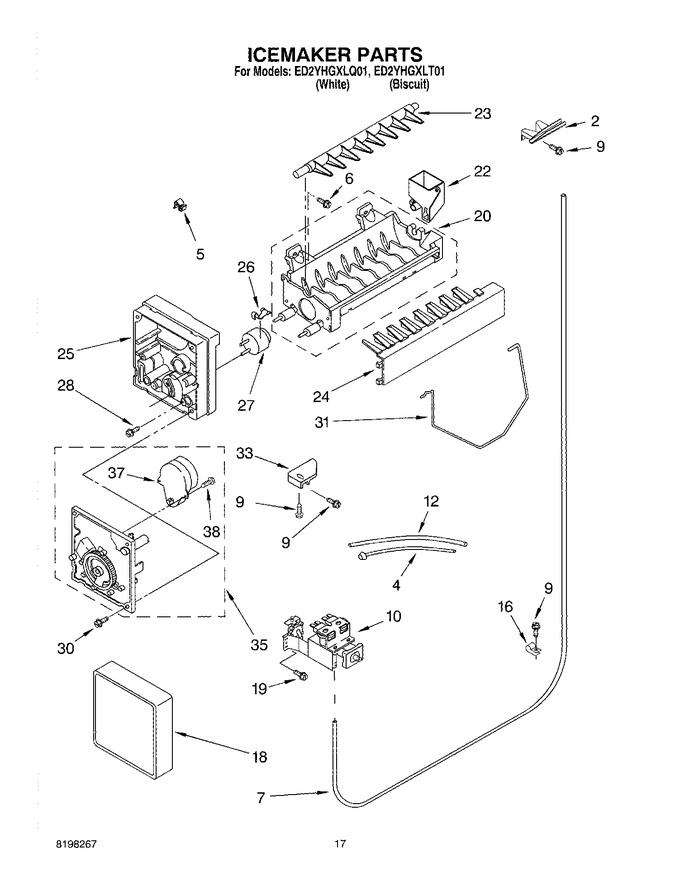

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 33.64 | |||||
| 4 | WPW10350006 | Tube, Filter Outlet (Replaces: 2255012) |
|
$ 115.54 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 7 | W10823511 | Tube Water (Replaces: 2181943) |
|
Immediately | $ 32.41 | ||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 10 | W10408179 | Valve, Solenoid (Replaces: 2188622) |
|
Immediately | $ 96.38 | ||||
| 12 | 8201597 | Tube, Filter Inlet (Replaces: 2200202) |
|
Immediately | $ 77.02 | ||||
| 16 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 11.18 | |||||
| 18 | WPW10289690 | Cover (Replaces: 2174155) |
|
Immediately | $ 8.40 | ||||
| 19 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 20 | WP542638 | Silicone Grease (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 20 | WPW10190929 | Mold & Heater Assembly (also Order (Replaces: 628228) |
|
$ 233.15 | |||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 51.19 | |||||
| 23 | WP627843 | Ejector (Replaces: 2194711) |
|
$ 83.60 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 86.05 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 11.05 | |||||
| 27 | 542369 | Cement Alumilastic) |
|
- | |||||
| 27 | WP627985 | Thermostat (also Order) (Replaces: 628397) |
|
$ 109.18 | |||||
| 28 | 8533917 | Screw (Replaces: 489322) |
|
$ 13.37 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 31 | W11807379 | Shut Off Arm (Replaces: 2171593) |
|
Immediately | $ 60.20 | ||||
| 33 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 32.17 | ||||
| 35 | W10190935 | Module Assembly (includes Items 37 & 38) (Replaces: 628399) |
|
Immediately | $ 110.07 | ||||
| 37 | W10190935 | Motor (Replaces: 628398) |
|
Immediately | $ 110.07 | ||||
| 38 | 489136 | Screw |
|
$ 10.29 | |||||
| 100 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 188.95 |
