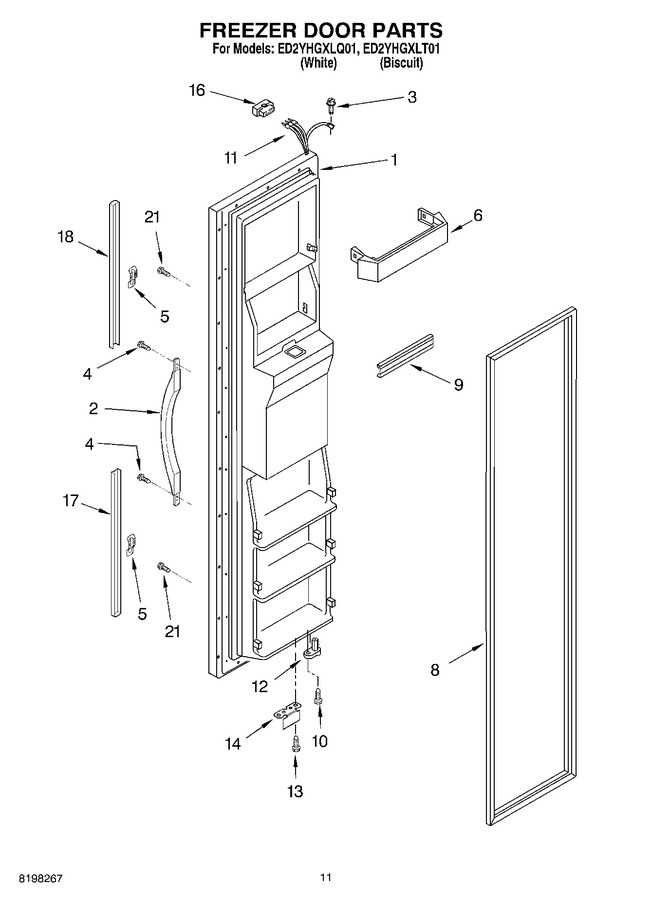

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2216317W		Freezer Door (includes Item No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2216317T		Freezer Door (includes Item No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
2	2186649T		Handle (biscuit)		Appelez-nous	-
2	2186649W		Handle (white)				$ 70.49
3	WP489128		Screw   (Replaces: 8281149)				$ 10.88
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.40
6	WP2156021		Trivet, Shelf (4)   (Replaces: 2156021)				$ 63.27
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 308.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 23.11
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	2311642		Wire Harness   (Replaces: 2206602)				$ 217.92
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
16	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
17	2194969W		Trim, Door-bottom (white)				$ 5.51
17	2194969T		Trim, Door-bottom (biscuit)		Appelez-nous	-
18	2194971W		Trim, Door-top (white)				$ 44.85
18	2194971T		Trim, Door-top (biscuit)		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
