SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control, Optional

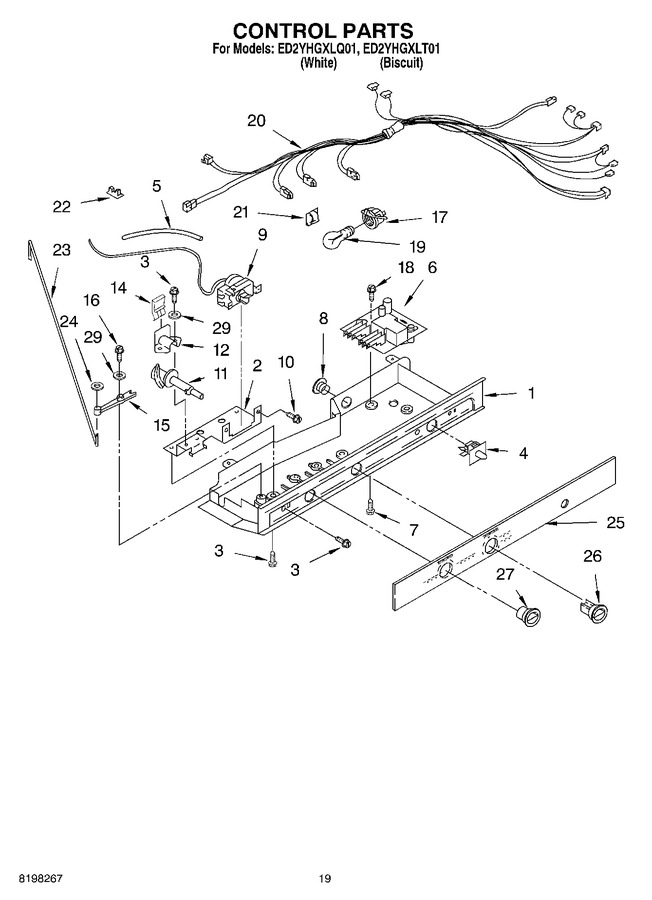

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200137		Control Box				$ 37.17
2	1110629		Mounting Bracket		Appelez-nous	-
3	WP3196557		Screw (4)   (Replaces: 3196537)			Immediately	$ 7.95
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	WP2196003		Tube Barrier   (Replaces: 2196001)				$ 7.95
6	W10822278		Adaptive Defrost Control   (Replaces: 2188375)			Immediately	$ 34.44
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	940014		Hole Plug				$ 18.33
9	WP2198202		Thermostat   (Replaces: 2198202)			Immediately	$ 78.43
10	WP965173		Screw   (Replaces: 487869)			Immediately	$ 10.72
11	WP2182195		Cam Assembly   (Replaces: 2182195)				$ 5.13
12	1110560		Bearing Body				$ 10.76
14	WP2196062		Clip, Damper Control   (Replaces: 2196062)				$ 10.71
15	1110559		Pivot Arm				$ 8.35
16	627068		Screw				$ 12.12
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
18	489392		Screw   (Replaces: 489398)				$ 13.35
19	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
20	2311636		Control Box Harness   (Replaces: 2187555)		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
22	1115375		Clip, Wiring				$ 11.15
23	1123960		Connecting Rod				$ 6.81
24	489285		Fastener, Push-on		Appelez-nous	-
25	2212074		Escutcheon, Control Box		Appelez-nous	-
26	2182111		Thermostat Knob				$ 25.40
27	2197871		Knob, Air Control				$ 6.56
29	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
29	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
29	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
29	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
29	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
29	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
29	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
29	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
29	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
29	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
29	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
29	350956		Enamel, Almond (12 Oz. Spray Can)				$ 51.44
29	833938		Kit, Terminal Connector				$ 8.07
29	WPW10312301		Ice Container Assembly   (Replaces: 2209779)				$ 430.90
29	WPW10312301		Ice Crusher Mechanism Assembly   (Replaces: 2152735)				$ 430.90
29	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
29	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
29	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
29	1117510		Torx Key				$ 5.84
29	489203		Spring Washer		Appelez-nous	-
29	350942		Primer, White (12 Oz. Spray Can)				$ 89.66
29	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
29	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
29	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 26.45
29	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
29	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
29	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
29	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
29	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
29	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
29	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
