01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

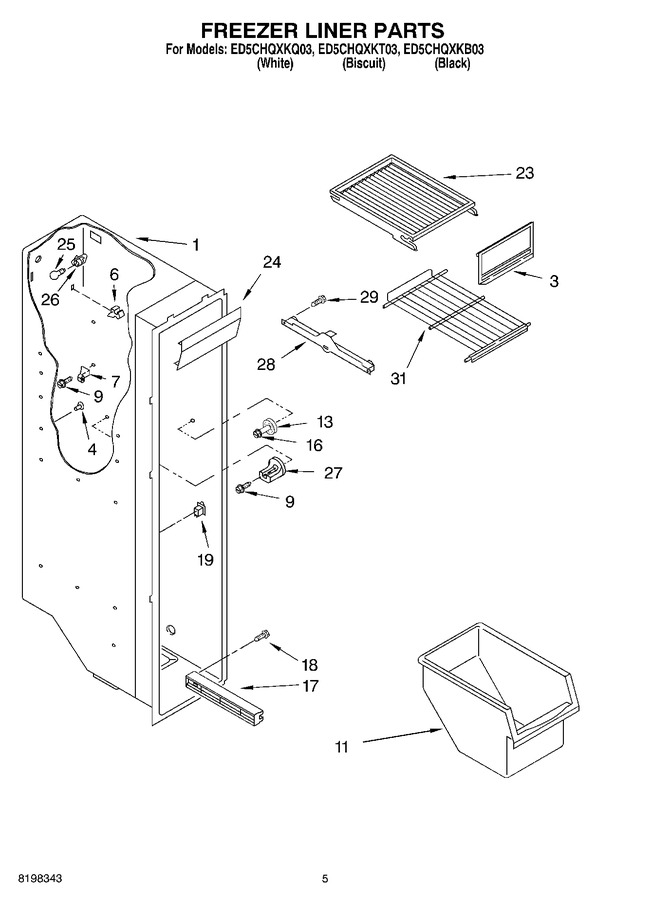

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
3	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 87.27
4	2176134		Grommet				$ 5.83
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196206		Support, Stud		Appelez-nous	-
9	W10142289		Screw   (Replaces: 3400893)				$ 9.15
11	WP2182971		Basket, Slope   (Replaces: 2182971)				$ 140.21
13	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
16	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
17	2181759		Slide, Basket (left Side (2))		Appelez-nous	-
17	2181760		Slide, Basket (right Side (2))		Appelez-nous	-
18	W10759522		Screw   (Replaces: 486298)				$ 7.75
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
23	2171714		Shelf, Top Compartment		Appelez-nous	-
24	2171705		Light Lens				$ 94.68
25	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
26	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
27	2196207		Stud, Rear				$ 7.61
28	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
28	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-
31	WP2174267		Shelf, Small (1)   (Replaces: 2174267)				$ 88.90
31	2174268		Shelf, Large (2)				$ 38.12

    View Diagram in Separate Window       Print Part List
