SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

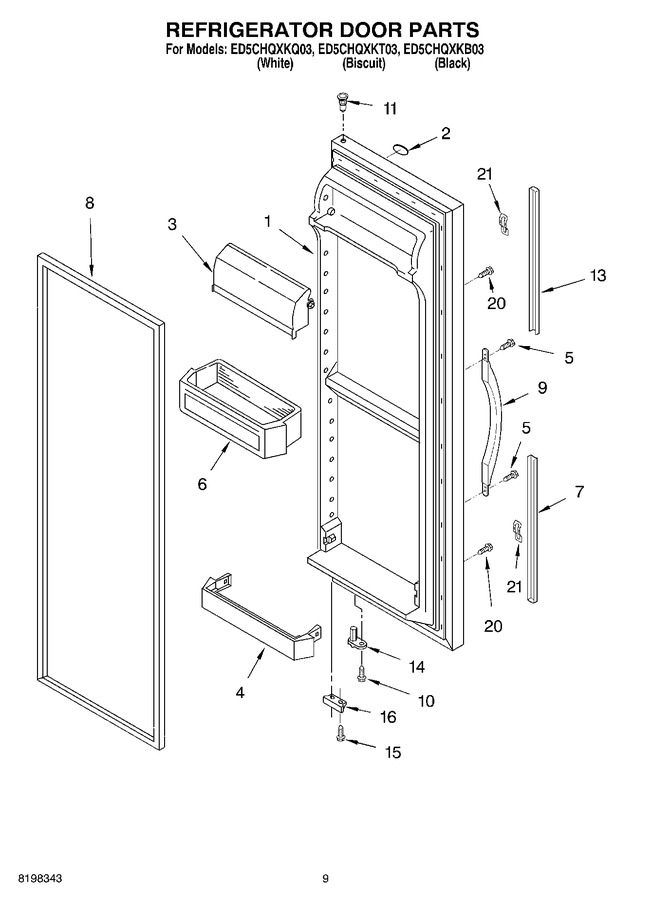

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206682W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
1	2206682T		Refrigerator Door (includes Item 8) (biscuit)		Appelez-nous	-
1	2206682B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
2	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 85.16
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
5	WP489491		Screw   (Replaces: 489491)				$ 6.95
6	WP2203828		Shelf Bin (3)   (Replaces: 2203828)				$ 95.52
7	2194969T		Extension, Bottom (biscuit)		Appelez-nous	-
7	WP2194969B		Extension, Bottom (black)   (Replaces: 2194969B)				$ 116.40
7	2194969W		Extension, Bottom (white)				$ 5.51
8	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
8	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
9	2186649T		Handle, Center (biscuit)		Appelez-nous	-
9	2186649W		Handle, Center (white)				$ 70.49
9	2186649B		Handle, Center (black)				$ 72.96
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.76
13	2194973T		Extension, Top (biscuit)		Appelez-nous	-
13	2194973B		Extension, Top (black)		Appelez-nous	-
13	2194973W		Extension, Top (white)				$ 5.65
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
16	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
20	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
21	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.40

    View Diagram in Separate Window       Print Part List
