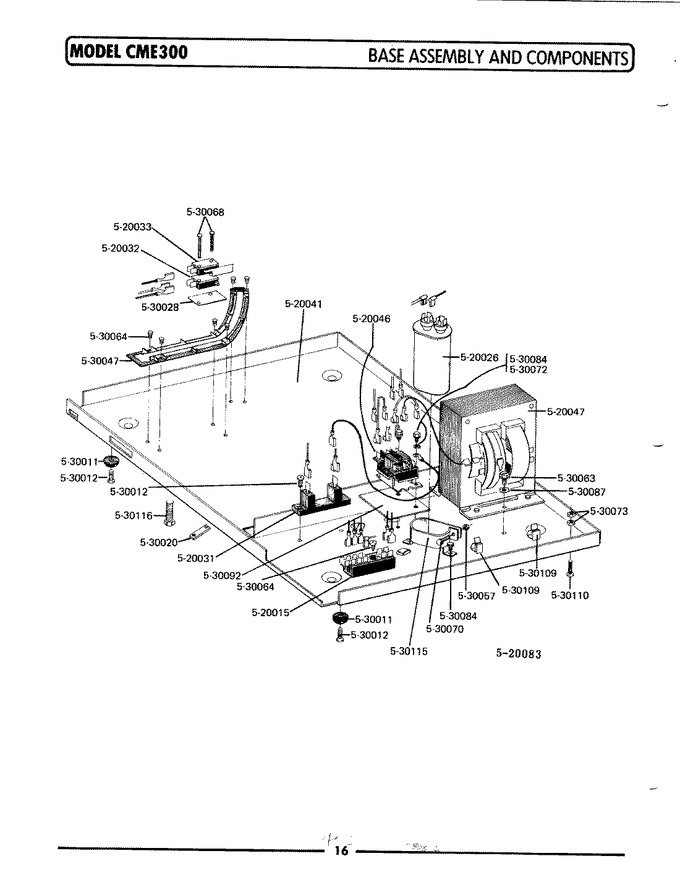

01 - Base Assembly & Components


02 - Blower, Magnetron & Exhaust Components


03 - Built-in Trim Kit


04 - Cabinet & Trim


05 - Control Panel & Timer (front View)


06 - Control Panel & Timer (rear View)


07 - Door Assembly


08 - Oven Cavity & Components (prior To 01)


09 - Oven Cavity & Components (series 01)


10 - Turn Tray & Supplies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	520015		Terminal Block	00	Appelez-nous	-
2	520026		Capacitor	00	Appelez-nous	-
3	520031		Rectifier	00	Appelez-nous	-
4	520032		Switch-interlock For Door	00	Appelez-nous	-
5	520033		Switch-safety For Door	00	Appelez-nous	-
6	520041		Base Assembly	00	Appelez-nous	-
7	520046		Power Relay	00	Appelez-nous	-
8	520047		Power Transformer	00	Appelez-nous	-
9	530011		Rubber Foot	00	Appelez-nous	-
10	WP250830		Screw   (Replaces: 530012)	00			$ 7.90
11	530020		Nut-switches To Bracket	00	Appelez-nous	-
12	530028		Insulator For Switches	00	Appelez-nous	-
13	530047		Guide	00	Appelez-nous	-
14	530057		Nut, No.6 - 32	00	Appelez-nous	-
15	530063		Screw, No.10-24 X 3/8 Inch	00	Appelez-nous	-
16	530064		Screw, No.6-32 X 1/4 Inch	00	Appelez-nous	-
17	530068		Screw, No.4-40 X 1 Inch	00	Appelez-nous	-
18	530070		Screw, No.6-32 X 3/8 Inch	00	Appelez-nous	-
19	530072		Lock Washer	00	Appelez-nous	-
20	530073		Nut For Ground Screw	00	Appelez-nous	-
21	530084		Screw, No.8-32 X 1/4 Inch	00	Appelez-nous	-
22	530087		Lock Washer	00	Appelez-nous	-
23	530092		Plate-power Relay To Base	00	Appelez-nous	-
24	530109		Clip For Wire Harness	00	Appelez-nous	-
25	530110		Screw, No.8-32 X 1/2 Inch	00	Appelez-nous	-
26	530115		Bracket For Capacitor	00	Appelez-nous	-
27	530116		Bolt-stop For Door Arm	00	Appelez-nous	-
28	520083		Screen, Oven Bas	00	Appelez-nous	-
