Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 520006 Knob For 30 Minute Timer 00 Appelez-nous -
2 520007 Knob For Power Level Timer 00 Appelez-nous -
3 520062 Bracket For Control Panel 00 Appelez-nous -
4 530006 Control Panel 00 Appelez-nous -
5 530023 Trim For Control Panel 00 Appelez-nous -
6 530050 Gasket Insert F/panel-right 00 Appelez-nous -
7 530082 Screw, No.6 X 3/8 Inch 00 Appelez-nous -
8 WP12990527 Screw   (Replaces: 530083) 00 In-Stock Immediately $ 7.88

9 530085 Spacer 00 Appelez-nous -
10 530086 Spring 00 Appelez-nous -
11 530093 Push Button - Start 00 Appelez-nous -
12 530094 Push Button - Stop 00 Appelez-nous -
13 530119 Insert For Control Panel 00 Appelez-nous -
14 530126 Screw, No.6-19 X 1/2 Inch 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

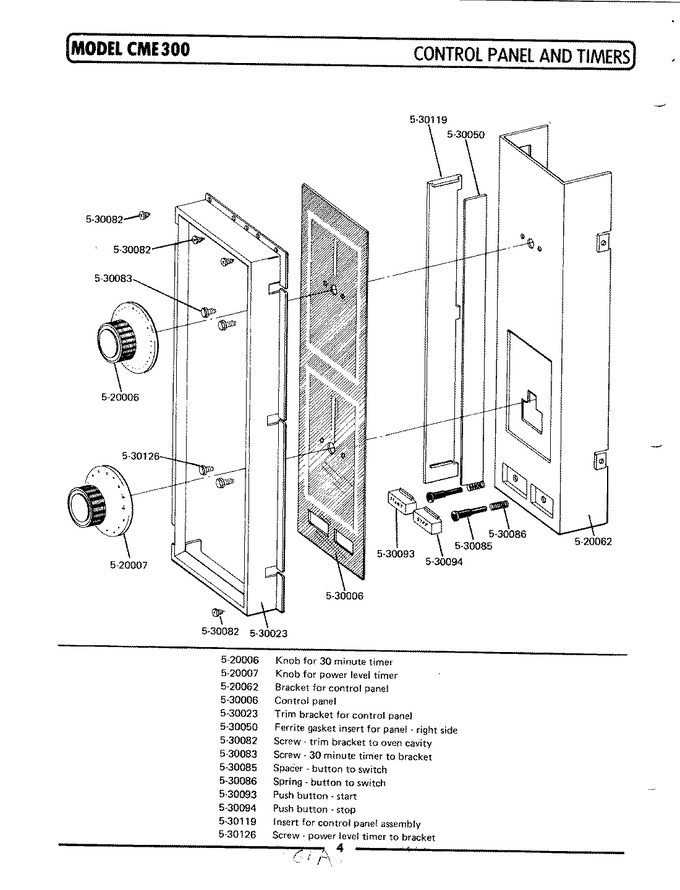

Diagram for CME300
