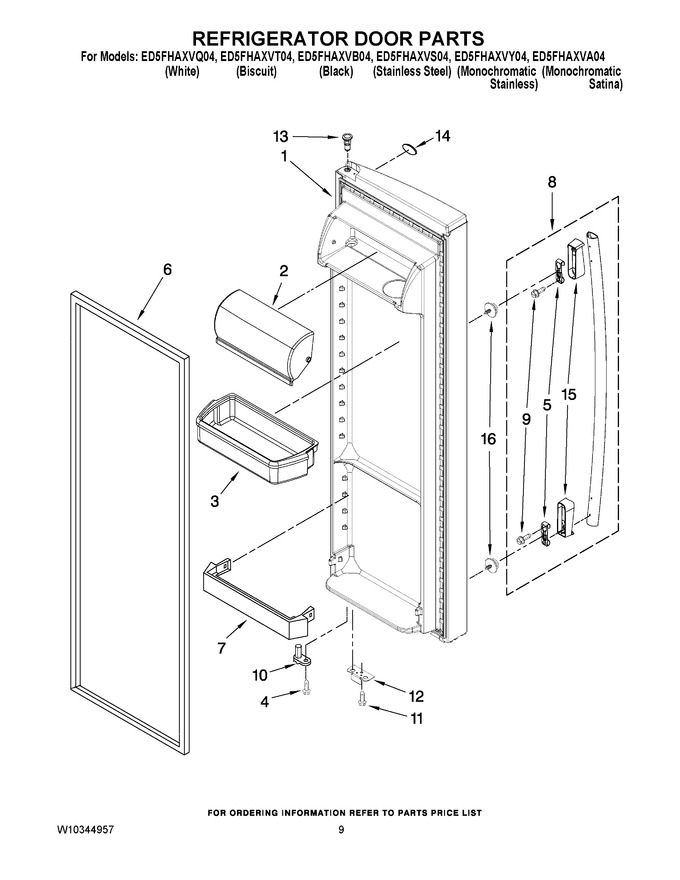

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169200		Refrigerator Door (includes Item No.6) (stainless Steel)		Appelez-nous	-
1	W10169199		Refrigerator Door (includes Item No.6) (biscuit)		Appelez-nous	-
1	W10169198		Refrigerator Door (includes Item No.6) (black)		Appelez-nous	-
1	W10169197		Refrigerator Door (includes Item No.6) (white)		Appelez-nous	-
1	W10257868		Refrigerator Door (includes Item No.6) (mono Stainless)		Appelez-nous	-
1	W10169203		Refrigerator Door (includes Item No.6) (mono Satina)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 85.16
3	WPW10321304		Shelf Bin (3)   (Replaces: 2304235)			Immediately	$ 44.73
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
6	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326338)				$ 319.42
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	WP2156022		Shelf Bin   (Replaces: 2156022)			Immediately	$ 72.80
8	W10210942A		Handle, Assy (black)   (Replaces: W10210943)				$ 123.36
8	W10210942A		Handle, Assy (white)   (Replaces: W10210942)				$ 123.36
8	W10210944A		Handle, Assy (biscuit)   (Replaces: W10210944)		Appelez-nous	-
8	WPW10257120		Handle, Assy (stainless, All)   (Replaces: W10257120)				$ 56.86
9	W10267047		Screw (4)   (Replaces: W10201588)				$ 12.83
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	W10185570		Bracket, Door Stop (chrome)				$ 11.59
13	2323581		Thimble-top		Appelez-nous	-
14	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
15	W10152864		Handle, Endcap (stainless, All)		Appelez-nous	-
15	W10127815		Handle, Endcap (biscuit)		Appelez-nous	-
15	W10127813		Handle, Endcap (white)				$ 78.50
15	W10127814		Handle, Endcap (black)		Appelez-nous	-
16	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
