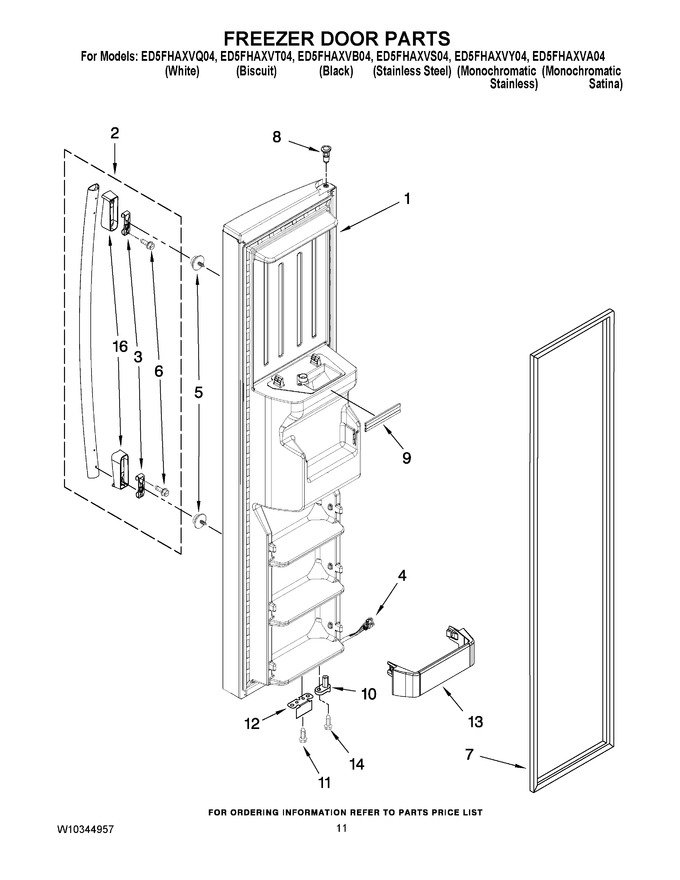

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10141323		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10141325		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10141324		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10141327		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10257807		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
1	W10177270		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
2	W10210942A		Handle, Assy (black)   (Replaces: W10210943)				$ 123.36
2	W10210942A		Handle, Assy (white)   (Replaces: W10210942)				$ 123.36
2	W10210944A		Handle, Assy (biscuit)   (Replaces: W10210944)		Appelez-nous	-
2	WPW10257120		Handle, Assy (stainless, All)   (Replaces: W10257120)				$ 56.86
3	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
4	WPW10193328		Wire Assy, Door   (Replaces: W10193328)				$ 127.80
5	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
6	W10267047		Screw (4)   (Replaces: W10201588)				$ 12.83
7	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
7	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
7	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
8	2301049		Thimble-top (for White, Black, Biscuit And Stainless Vcm Models)				$ 75.42
8	WP2182181		Thimble-top (for Stainless Steel Model)   (Replaces: 2308091)				$ 7.76
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 23.11
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
13	WP2309718		Trivet-fc   (Replaces: 2309718)				$ 58.56
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
16	W10152864		Handle, Endcap (stainless, All)		Appelez-nous	-
16	W10127813		Handle, Endcap (white)				$ 78.50
16	W10127815		Handle, Endcap (biscuit)		Appelez-nous	-
16	W10127814		Handle, Endcap (black)		Appelez-nous	-
