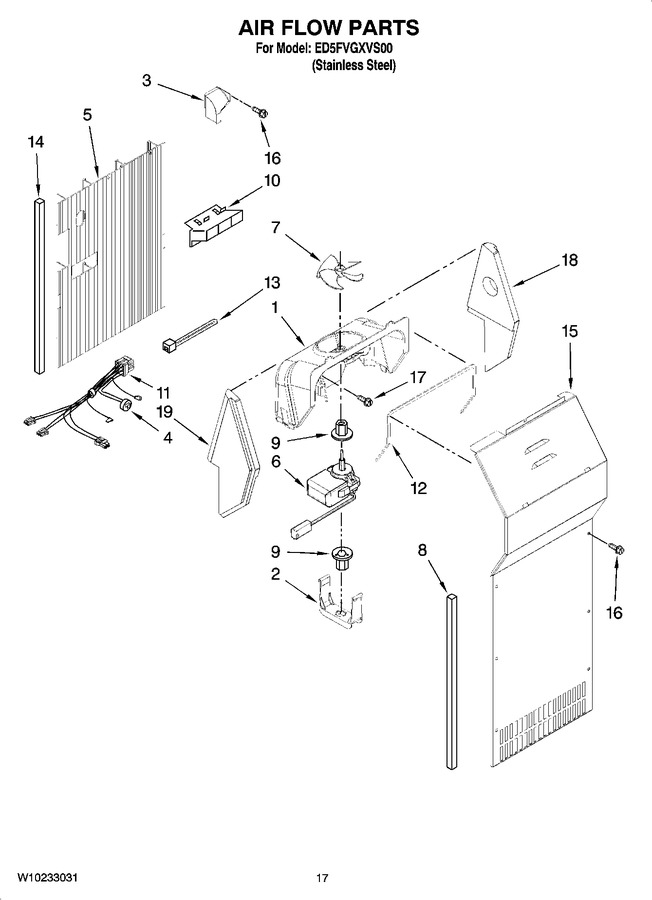

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2182120 | Fan Scroll (Replaces: 2182120) |
|
Immediately | $ 117.57 | ||||
| 2 | 2155590 | Retainer Fan Motor |
|
$ 5.83 | |||||
| 3 | W10803597 | Air Scoop (Replaces: 2161229) |
|
$ 86.12 | |||||
| 4 | WPW10225581 | Bi-metal, Defrost (Replaces: 2321799) |
|
Immediately | $ 50.77 | ||||
| 5 | 2203593 | Air Duct Freezer |
|
- | |||||
| 6 | WP2315549 | Fan Motor (Replaces: 2315549) |
|
Immediately | $ 249.86 | ||||
| 7 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 8 | WP2304241 | Gasket, Evaporator Cover (2) (Replaces: 2304241) |
|
Immediately | $ 86.94 | ||||
| 9 | WP2176759 | Fan Grommet (2) (Replaces: 2176759) |
|
$ 8.16 | |||||
| 10 | 2182146 | Duct, Icemaker |
|
$ 88.84 | |||||
| 11 | W11225843 | Harness, Fan Evaporator (includes 4) (Replaces: W10129815) |
|
$ 96.86 | |||||
| 12 | WP2155789 | Gasket, Fan Scroll (Replaces: 2155789) |
|
$ 8.18 | |||||
| 13 | WPW10339879 | Wire Tie (Replaces: 2172840) |
|
$ 8.30 | |||||
| 14 | 4388500 | Gasket (Replaces: 2203876) |
|
$ 94.91 | |||||
| 15 | 2203841 | Cover, Evaporator (includes 8) |
|
- | |||||
| 16 | 4389654 | Screw (Replaces: 8281159) |
|
$ 14.58 | |||||
| 17 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 18 | 4388358 | Support, R.s (Replaces: 2203595) |
|
$ 32.72 | |||||
| 19 | 4388358 | Support, L.s (Replaces: 2203596) |
|
$ 32.72 |
