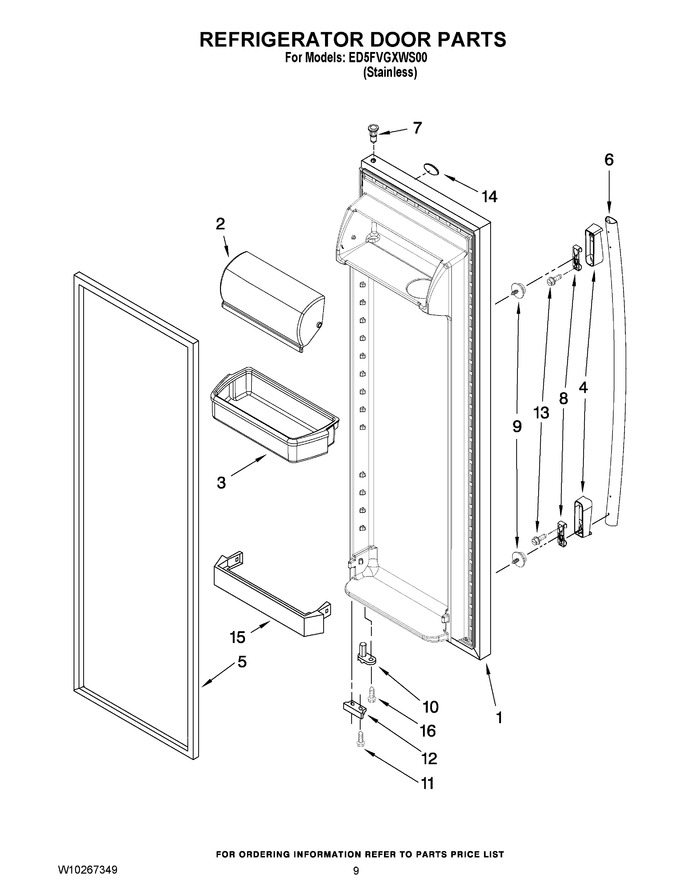

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251670 | Refrigerator Door (includes Item 5) (stainless) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | WPW10321304 | Door Bin (3) (Replaces: 2304235) |
|
Immediately | $ 44.73 | ||||
| 4 | W10152862 | End Cap |
|
- | |||||
| 5 | 2159083 | Door Gasket Magnetic (Replaces: 2309529) |
|
$ 251.49 | |||||
| 6 | W10273555 | Handle (Replaces: W10127768) |
|
$ 197.28 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 8 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 36.55 | |||||
| 9 | WPW10288153 | Screw, Mounting (Replaces: W10129563) |
|
Immediately | $ 9.65 | ||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 12 | WP2206629B | Bracket, Door Stop (Replaces: 2206629B) |
|
$ 42.79 | |||||
| 13 | WP8533988 | Screw (Replaces: W10155511) |
|
Immediately | $ 8.78 | ||||
| 14 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 15 | WP2309941 | Trivet, Shelf (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 16 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 |
