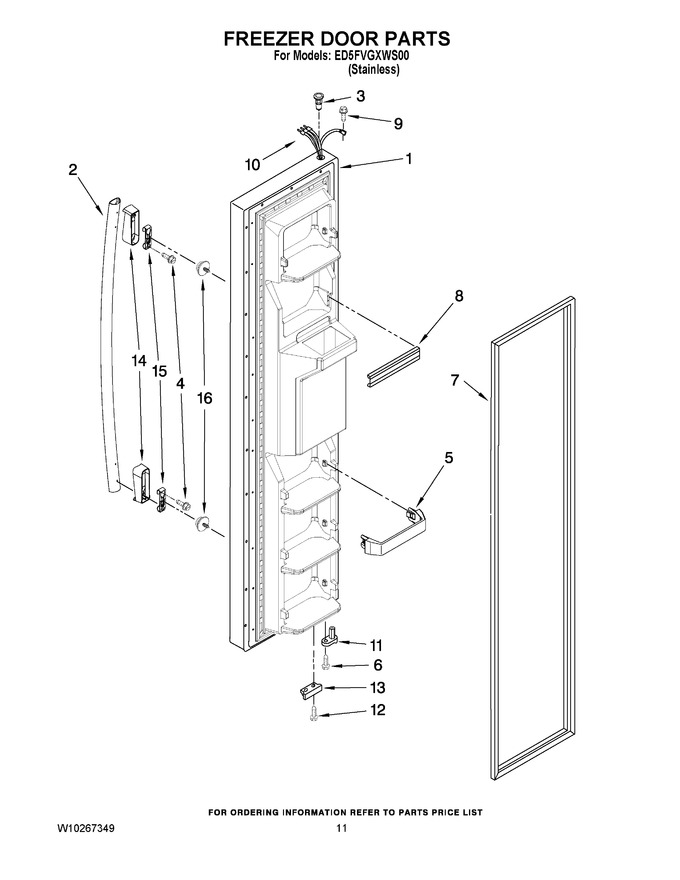

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10231623		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	W10273555		Handle   (Replaces: W10127768)				$ 197.28
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
4	WP8533988		Screw   (Replaces: W10155511)			Immediately	$ 8.78
5	WP2309718		Trivet (4)   (Replaces: 2309718)				$ 61.49
6	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
7	2159082		Door Gasket, Magnetic   (Replaces: 2309533)				$ 332.49
8	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
9	WP489128		Screw   (Replaces: 488500)				$ 11.40
10	2311641		Wire Harness		Appelez-nous	-
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	WP2206629B		Bracket, Door Stop   (Replaces: 2206629B)				$ 42.79
14	W10152862		End Cap		Appelez-nous	-
15	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
16	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
