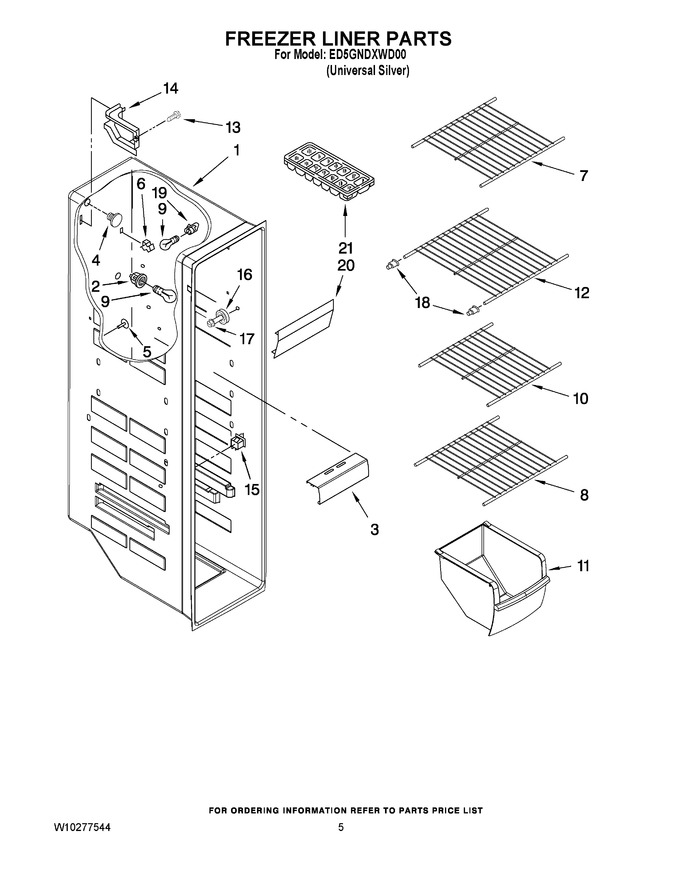

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Unit Parts


09 - Control Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Aseviceable Part)		Appelez-nous	-
2	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
3	2198479		Light Lens		Appelez-nous	-
4	2223173		Plug, Fill Tube				$ 9.24
5	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	W10318945		Shelf, Wire   (Replaces: W10276748)				$ 103.20
8	W10276759		Shelf, Wire		Appelez-nous	-
9	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
10	WPW10318947		Shelf, Wire   (Replaces: W10276761)				$ 91.81
11	W11577967		Freezer Bin   (Replaces: 2309757)				$ 96.30
12	WPW10318948		Shelf, Wire   (Replaces: W10276762)				$ 155.23
13	WP489478		Screw   (Replaces: 489478)				$ 8.18
14	2160912		Wiring Cover		Appelez-nous	-
15	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 39.09
16	W11527119		Stud Assembly   (Replaces: W10173127)		Appelez-nous	-
17	W10191952		Screw				$ 5.65
18	WPW10130299		Shelf Cup   (Replaces: W10130299)			Immediately	$ 14.70
19	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
20	2171705		Light Lens				$ 94.68
21	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
