SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Unit Parts


09 - Control Parts


10 - Optional Parts (not Included)

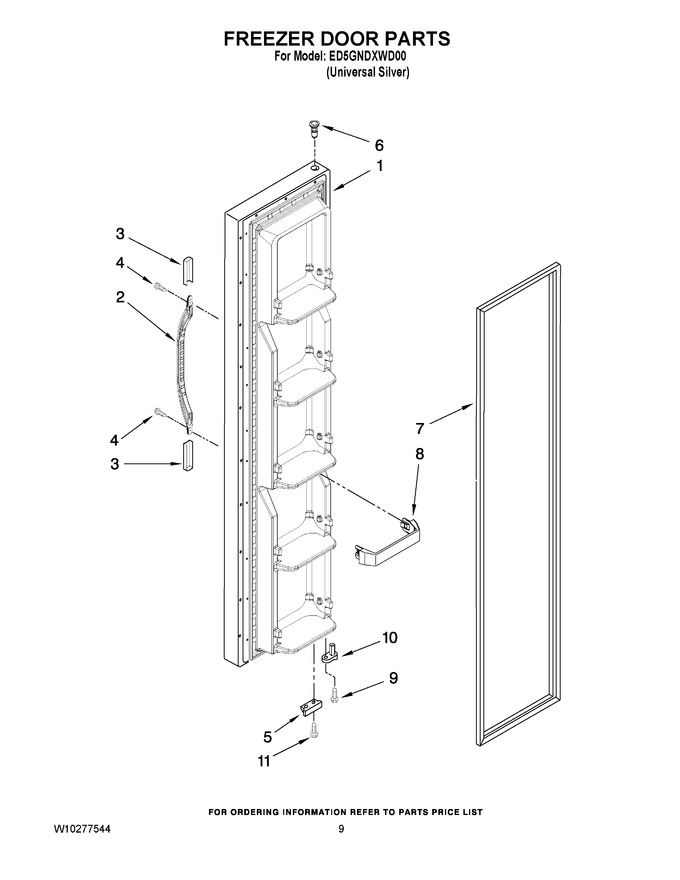

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258644		Freezer Door (includes Item No.7) (universal Silver)		Appelez-nous	-
2	2304413B		Handle		Appelez-nous	-
3	WP2194272B		Endcap, Handle   (Replaces: 2194272B)				$ 7.30
4	WP489491		Screw (4)   (Replaces: 489491)				$ 7.30
5	W10185567		Bracket, Door Stop		Appelez-nous	-
6	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
7	2159082		Door Gasket, Magnetic (service)   (Replaces: 2309533)				$ 332.49
8	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
9	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41

    View Diagram in Separate Window       Print Part List
