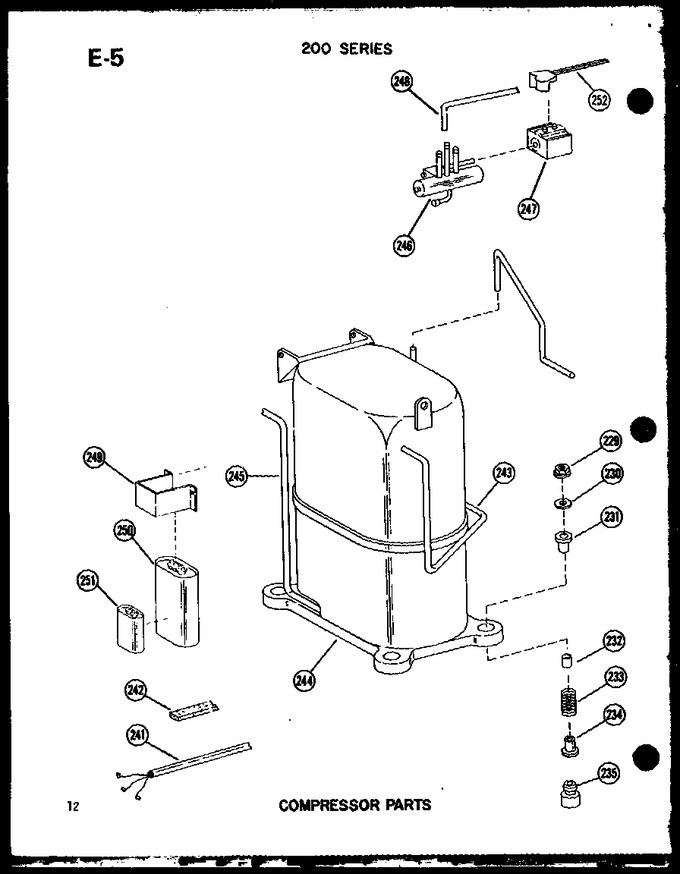

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 229 | A3312201 | Nut |
|
- | |||||
| 229 | M0283610 | Nut |
|
- | |||||
| 230 | M0274008 | Washer,fibre |
|
- | |||||
| 231 | A3314001 | Grommet |
|
- | |||||
| 233 | A3338901 | Spring, Compressor |
|
- | |||||
| 234 | A3314101 | Grommet |
|
- | |||||
| 241 | C5947001 | Wiring Harness |
|
- | |||||
| 242 | A3030307 | Gasket |
|
- | |||||
| 243 | D5480201 | Tube-suction |
|
- | |||||
| 244 | D5547001 | Compressor, Copeland Srb5-0200 |
|
- | |||||
| 245 | C5886105 | Tube-discharge |
|
- | |||||
| 249 | B5115902 | Strap-capacitor Mtg |
|
- | |||||
| 250 | D5515656 | Capacitor, Dual, 25/5 Mfd, 370 |
|
- |
