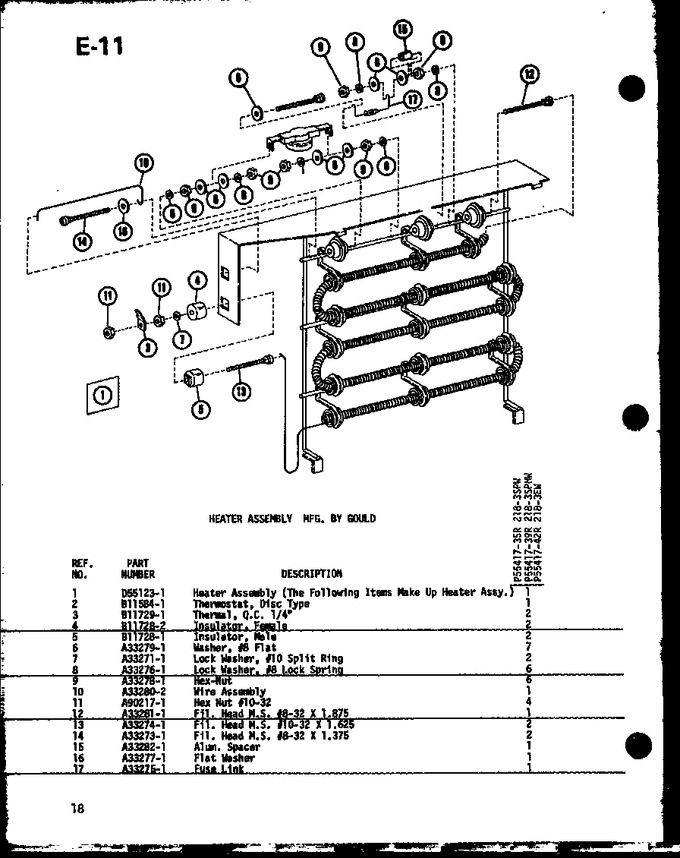

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D5512301 | Heater Assy |
|
- | |||||
| 2 | B1158401 | Thermostat |
|
- | |||||
| 3 | B1172901 | Thermal, Q.c. 1/4`` |
|
- | |||||
| 4 | B1172802 | Insulator, Female |
|
- | |||||
| 5 | B1172801 | Insulator, Male |
|
- | |||||
| 6 | A3327901 | Washer |
|
- | |||||
| 7 | A3327101 | Split Lock Washer |
|
- | |||||
| 8 | A3327601 | Lock Washer |
|
- | |||||
| 9 | A3327801 | Hex-nut |
|
- | |||||
| 10 | A3328002 | Wire Assembly |
|
- | |||||
| 11 | A9021701 | Hex Nut |
|
- | |||||
| 12 | A3328101 | Fil. Head M.s. |
|
- | |||||
| 13 | A3327401 | Sq Shoulder Bolt |
|
- | |||||
| 14 | A3327301 | Screw |
|
- | |||||
| 15 | A3328201 | Alum. Spacer |
|
- | |||||
| 16 | A3327701 | Flat Washer |
|
- | |||||
| 17 | A3327501 | Fusible Link Assy |
|
- |
