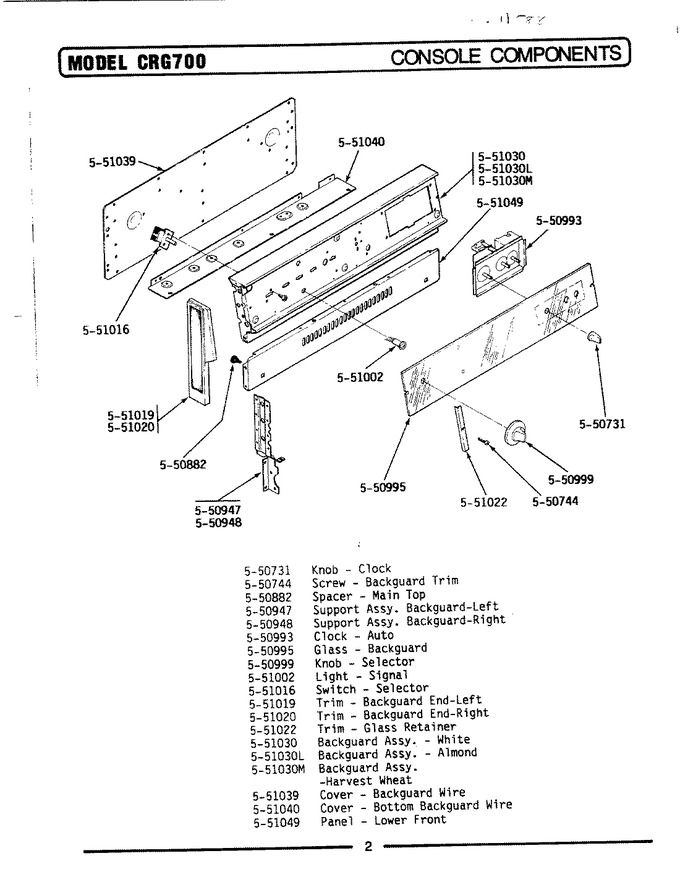

03 - Console Components


04 - Oven


05 - Oven Door Assembly


06 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	550731		Knob - Clock		Appelez-nous	-
2	550744		Screw - Console Trim		Appelez-nous	-
3	550882		Spacer, Main Top		Appelez-nous	-
4	550947		Support Assy, Bkgd Lf		Appelez-nous	-
5	550948		Support Assy, Bkgd Rt		Appelez-nous	-
6	550993		Clock, Auto		Appelez-nous	-
7	550995		Glass, Backguard		Appelez-nous	-
8	550999		Knob, Selector		Appelez-nous	-
9	551002		Light, Signal		Appelez-nous	-
10	551016		Switch		Appelez-nous	-
11	551019		Trim, Backguard End - Left		Appelez-nous	-
12	551020		Trim, Backguard End - Right		Appelez-nous	-
13	551022		Trim, Glass Retainer				$ 6.64
14	551030		Backguard Assembly - White		Appelez-nous	-
17	551039		Cover, Backguard Wire		Appelez-nous	-
18	551040		Cover, Bottom Bkgd Wire		Appelez-nous	-
19	551049		Panel Assy, Backguard Lower		Appelez-nous	-
