New Model Search:

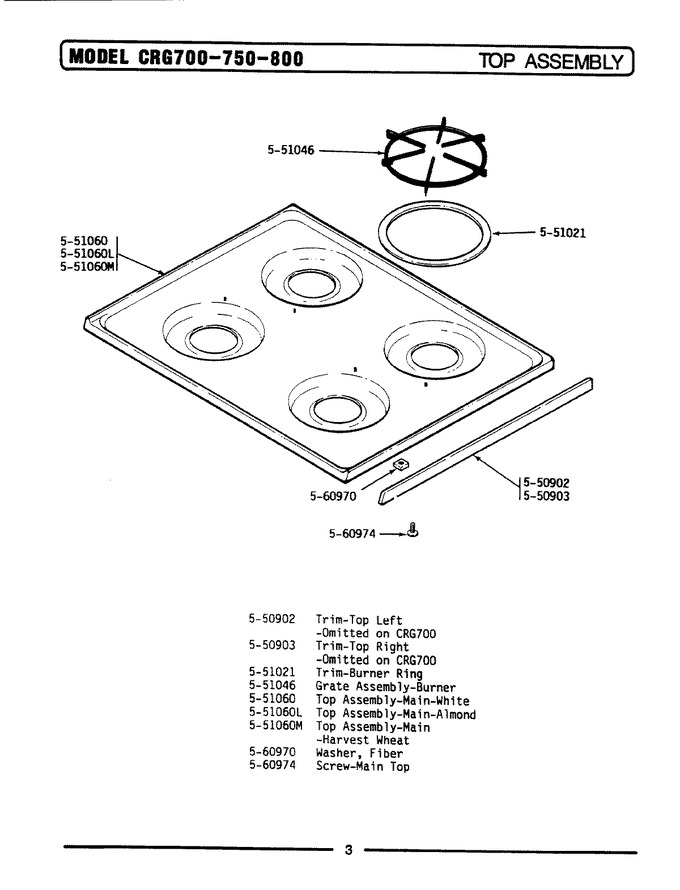

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 551021 | Trim, Burner Ring |
|
- | |||||
| 2 | 551046 | Grate Assy, Burner |
|
- | |||||
| 3 | 551060 | Top Assy, Main-white |
|
- | |||||
| 6 | 560970 | Washer, Fiber |
|
- | |||||
| 7 | COMM PART | Screw, Main Top (Replaces: 560974) |
|
- |
