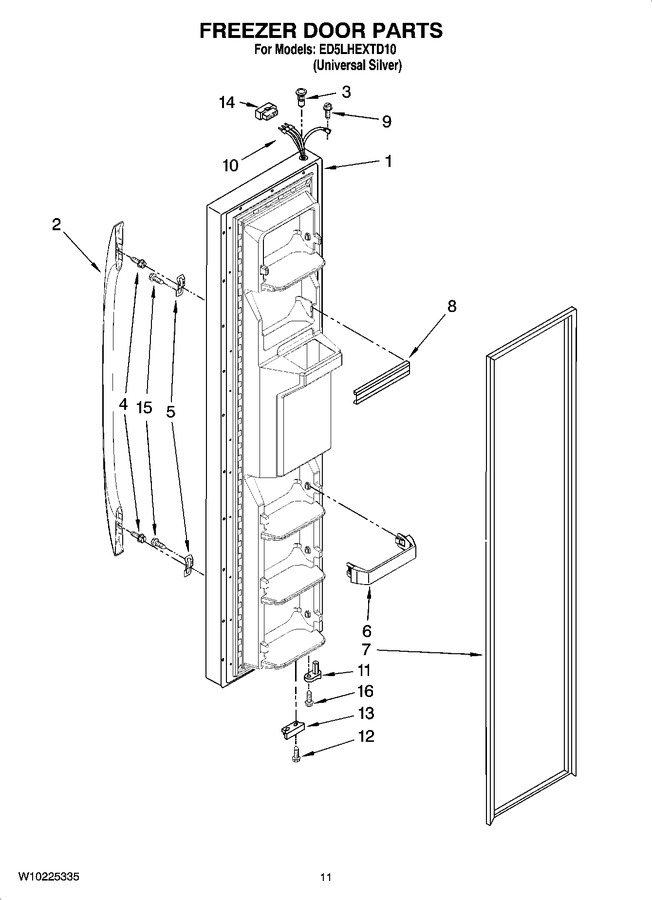

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2325839US | Freezer Door (includes Item 8 And Dispenser Front Parts) (universal Silver) |
|
- | |||||
| 2 | WPW10136231 | Handle (black) (Replaces: W10136231) |
|
$ 366.99 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 8.15 | |||||
| 4 | 8533920 | Screw |
|
$ 5.27 | |||||
| 5 | WP2255411 | Clip, Mounting (Replaces: 2255411) |
|
$ 36.55 | |||||
| 6 | WP2309718 | Trivet (4) (Replaces: 2309718) |
|
$ 61.49 | |||||
| 7 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2309533) |
|
$ 332.49 | |||||
| 8 | WPW10307490 | Trim, Door Shelf (Replaces: 2209681) |
|
Immediately | $ 24.27 | ||||
| 9 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 10 | 2311641 | Wire Harness |
|
- | |||||
| 11 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 12 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 13 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 42.79 | |||||
| 14 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 24.83 | |||||
| 15 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 16 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 |
