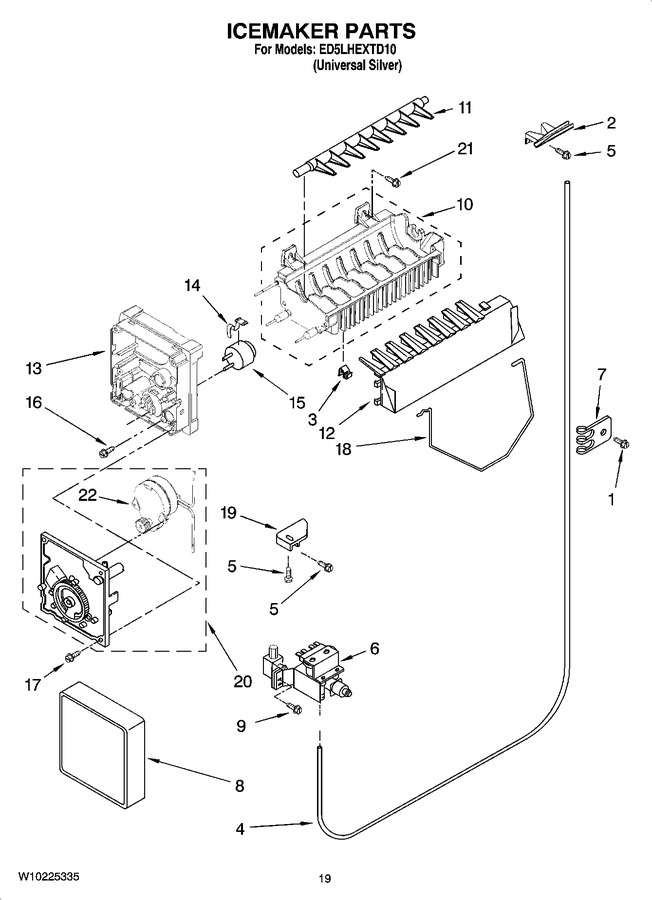

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 33.64 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 4 | W10823511 | Tube, Water (Replaces: 2223137) |
|
Immediately | $ 32.41 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 6 | W10408179 | Filter Valve Asm (Replaces: 2315534) |
|
Immediately | $ 96.38 | ||||
| 7 | WP488366 | Tube Clip (Replaces: 2208136) |
|
$ 11.18 | |||||
| 8 | WPW10289690 | Cover (Replaces: 2174155) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 10 | WPW10190929 | Mold & Heater Assembly (alsoorder 542638) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 12 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 86.05 | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 15 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 109.18 | |||||
| 16 | 8533917 | Screw |
|
$ 13.37 | |||||
| 17 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 18 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 60.20 | ||||
| 19 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 32.17 | ||||
| 20 | 8201515 | Module Assembly (includes 22) (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 21 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 100 | WPW10190965 | Complete Icemaker Assembly (Replaces: W10190966) |
|
Immediately | $ 105.08 | ||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 8171357 | Paint, Pressurized Spray (12 Oz.) (graphite) |
|
$ 82.31 | ||||||
| 80051 | Paint, Touch-up (1/2oz.) (graphite) |
|
$ 7.64 | ||||||
| W10134625 | Paint, Touch-up (1/2oz.) (apollo Grey) |
|
Immediately | $ 26.45 | |||||
| 799340 | Paint, Bulk (1qt.) (black) |
|
- | ||||||
| 799344 | Paint, Bulk (1qt.) (white) |
|
$ 237.46 | ||||||
| 8171358 | Paint, Bulk (1qt.) (graphite) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| 833938 | Kit, Terminal Connector |
|
$ 8.07 | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 89.66 | ||||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
$ 57.04 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 |
