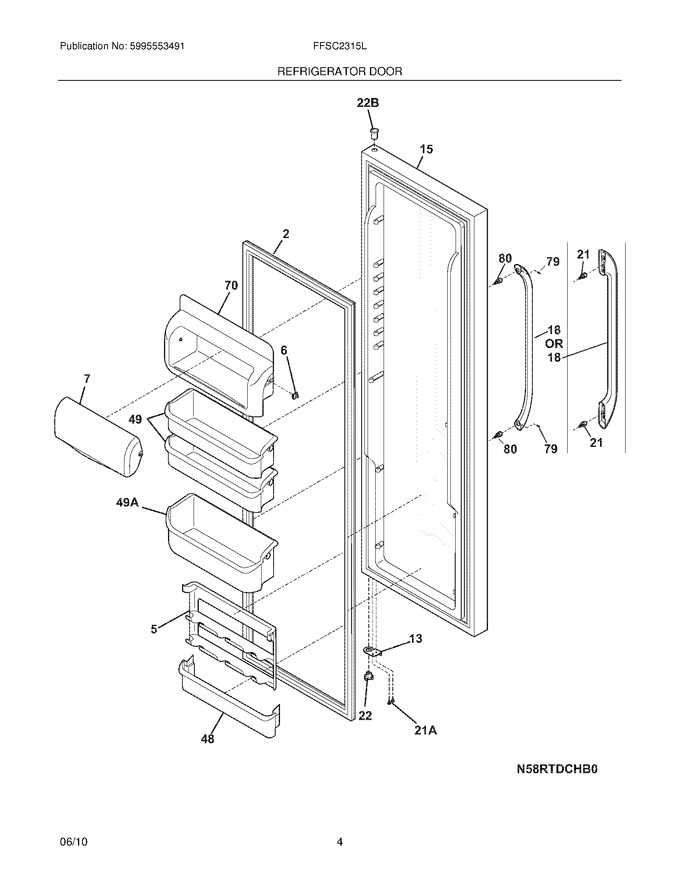

05 - Refrigierator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516101		Rack-can				$ 73.40
6	241515901		Lug-dairy Compartment				$ 47.19
7	241515606		Door-dairy   (Replaces: 241515601)				$ 45.51
13	240581901		Door Stop,white ,refr				$ 48.83
15	241837296		Door-refr,smooth ,white ,complete Assy		Appelez-nous	-
18	242059101		Handle-door,white				$ 139.88
21	241695904		Screw				$ 16.01
22	242015301		Bearing-hinge(ref),natural ,closer				$ 12.71
48	241511706		Bin-door,ref				$ 80.20
49	241505306		Bin-door,2-liter				$ 80.20
70	241515801		Compartment-dairy,removable				$ 197.66
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 9.27
22B	240328402		Bearing-hinge,natural ,upper				$ 22.05
49A	241505506		Bin-door				$ 99.83
F2	241510201		Gasket-refr Door,white ,magnetic			Immediately	$ 246.82
