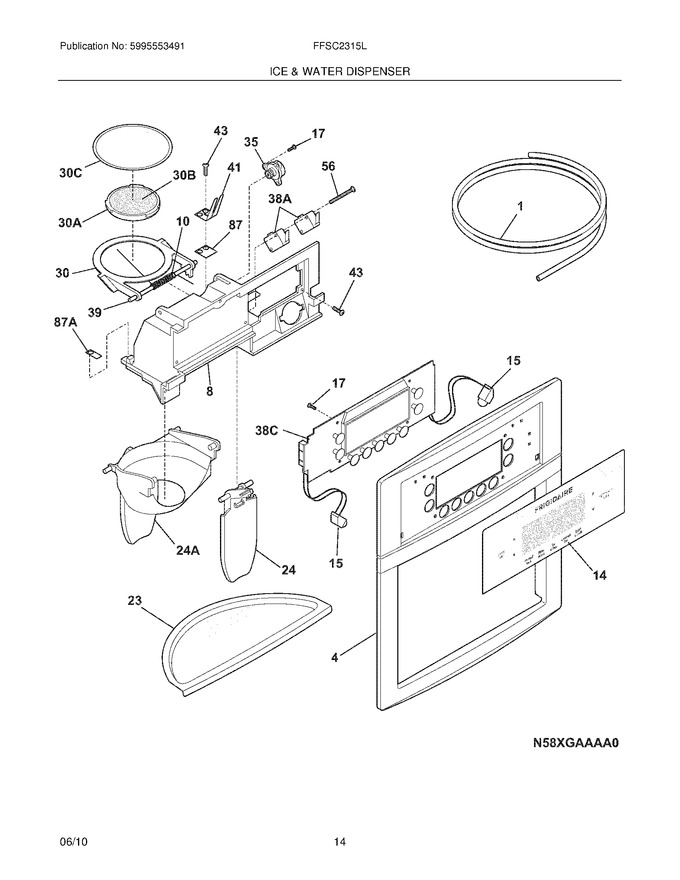

15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 66.94
4	242073001		Cover-module,white		Appelez-nous	-
8	242073701		Module-dispenser,white		Appelez-nous	-
10	241688901		Spring-torsion			Immediately	$ 23.63
14	242073101		Label-module Cover,white		Appelez-nous	-
15	242065203		Light-led   (Replaces: 242070901)				$ 114.98
17	241679801		Screw				$ 15.75
23	242076001		Drip Tray,white		Appelez-nous	-
24	241682001		Actuator-water,white			Immediately	$ 63.79
30	241688401		Door Assy-ice Chute				$ 55.13
35	241689301		Damper-rotary				$ 78.36
39	241688801		Pin-hinge				$ 48.04
41	241689001		Spring-actuator				$ 24.41
43	215296301		Screw,plask H/l ,no.6 X 3/8		Appelez-nous	-
56	241689201		Screw-micro Switch,pan Head				$ 14.96
87	241688302		Bearing Plate				$ 22.05
24A	241681901		Actuator-ice,white				$ 89.78
30A	241688501		Door Center				$ 58.85
30B	241688601		Insulation-door				$ 70.19
30C	241688701		Door Seal				$ 44.95
87A	241688301		Bearing Plate				$ 22.05
F38A	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 241689101)			Immediately	$ 9.56
F38A	242065203		Harness-wiring   (Replaces: 242065201)				$ 114.98
F38C	242073201		Switch		Appelez-nous	-
NI	218976421		Tube-water Inlet,valve To Door				$ 22.84
NI	218976429		Tube-water Inlet,97.50`` ,brown/tan				$ 44.89
NI	241850615		Tube-water Inlet,inlet Valve ,to Filter   (Replaces: 218976915)				$ 38.59
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker   (Replaces: 240561702)			Immediately	$ 22.84
NI	241733001		Washer,flat		Appelez-nous	-
NI	240411502		Clip-dispenser Cover		Appelez-nous	-
NI	5303918256		Dispenser Heater Kit				$ 526.84
