Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3404474 Harness, Wire (2) Appelez-nous -
2 W11676450 Screw, 10-24 X 3/8 (2)   (Replaces: 3400000) Special Order $ 14.06

5 W11808444 Screw, 8-32 X 5/16 (4)   (Replaces: 98139) Appelez-nous -
6 3390115 Bracket, Timer (2) Appelez-nous -
7 3389669 Timer (includes 4-pin Cam) (2) Appelez-nous -
8 WP3387974 Cam (3 Pin (60 Min.))   (Replaces: 3387974) Special Order $ 8.32

8 WP339855 Cam (4 Pin (45 Min.))   (Replaces: 339855) Special Order $ 8.37

8 51-161-6 Cam (6 Pin (30 Min.))   (Replaces: 343777) Special Order $ 34.52

9 3389224 Funnel, Coin (2) Appelez-nous -
10 3389232 Protector, Slide (2) Appelez-nous -
11 342043 Screw, 10-32 X 3/8 (4) Appelez-nous -
12 3389625 Panel, Control Appelez-nous -
13 3390036 Insert, Decorative Appelez-nous -
14 3389520 Lens, Light (6) Appelez-nous -
15 356388 Rivet (4) Appelez-nous -
16 3401760 Indicator, Light (2) Appelez-nous -
17 3394078 Switch, Pushbutton (2) Appelez-nous -
18 3348587 Button, Pushbutton (8) Special Order $ 12.40

19 3390189 Relief, Strain (2) 10-24 X 1/2 Appelez-nous -
20 3393463 Strut Appelez-nous -
21 340025 Wire, Ground Appelez-nous -
23 3402754 Collar Appelez-nous -
25 WP356418 Screw, No.10-32 (4)   (Replaces: 96435) Special Order $ 7.92

26 98437 Screw (8) Appelez-nous -
27 W11539855 Cover, Terminal Block (2)   (Replaces: 3396795) In-Stock Immediately $ 599.76

28 3390443 Retainer, Terminal (2) Appelez-nous -
29 WP489128 Screw, 8-32 X 7/16   (Replaces: 303921) Special Order $ 10.88

37 3387258 Cord, Power Appelez-nous -
39 WP3391018 Tie, Cable   (Replaces: 3391018) Special Order $ 31.84

40 W10850756 Screw, 10-32 X 1/2   (Replaces: 697776) Special Order $ 7.76

42 3390424 Extension, Slide In-Stock Immediately $ 68.25

43 351297 Plug Appelez-nous -
1A 385826 Receptacle (2) (uses Terminals 94614) Appelez-nous -
1B 717252 Receptacle, 2 Way Appelez-nous -
1C 351296 Receptacle Appelez-nous -

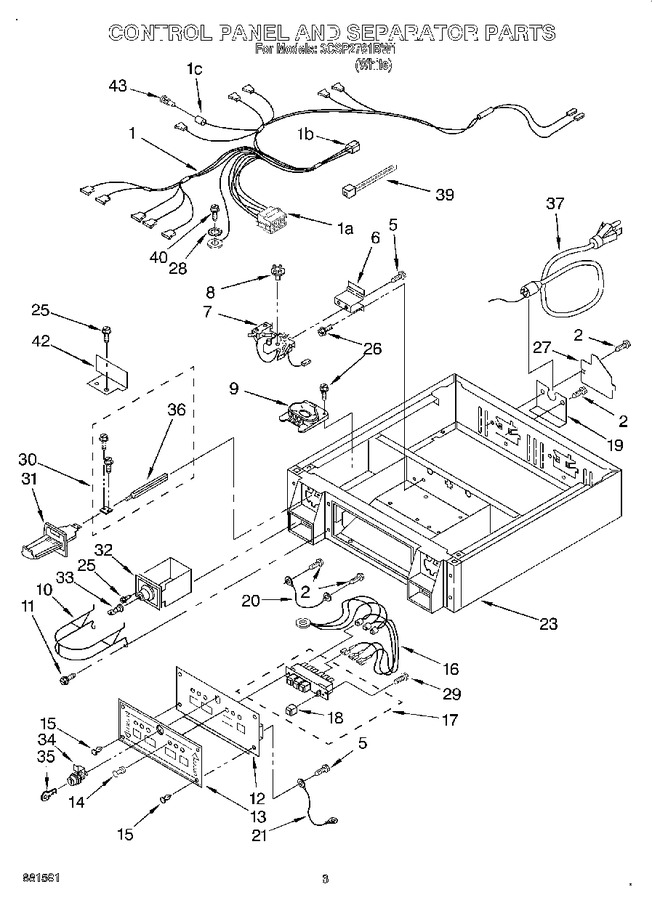

    View Diagram in Separate Window     Print Icon   Print Part List
