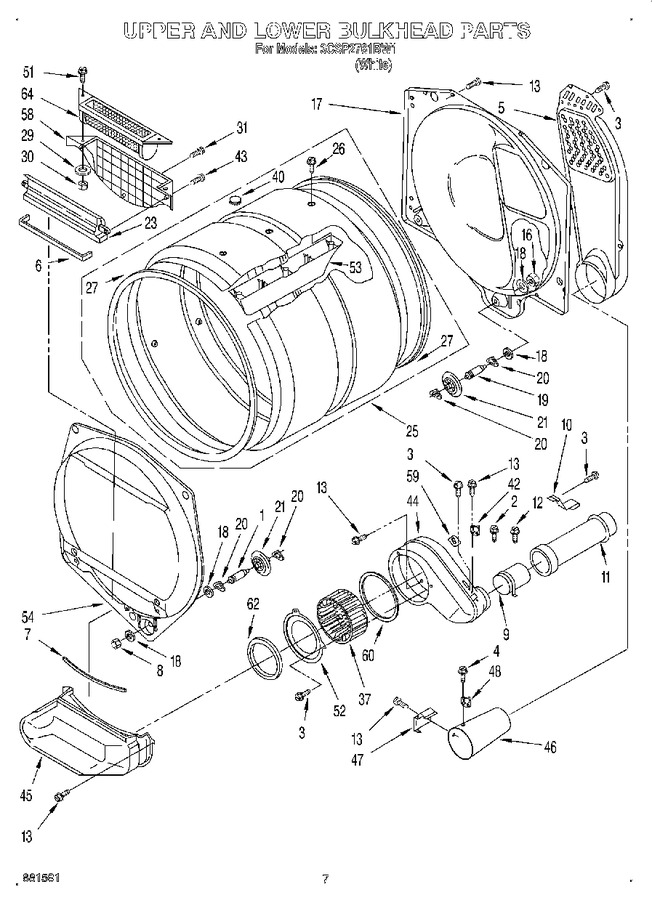

05 - Optional


06 - Upper And Lower Bulkhead, Lit/optional


07 - 3402609 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 3399508)			Immediately	$ 62.21
2	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 7.79
3	WPW10139210		Screw   (Replaces: 3390646)				$ 7.50
4	WP90767		Screw 8-18 3/8 8-18 X 5/16   (Replaces: 90767)			Immediately	$ 7.82
5	W11168650		Air Duct Assembly   (Replaces: 3394346)				$ 97.66
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.97
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 7.97
8	WP3359452		Nut, 3/8 X 16 (r.h.)   (Replaces: 3359452)			Immediately	$ 7.19
9	WP8563747		Exhaust Pipe & Bracket   (Replaces: 3395532)				$ 91.38
10	WP3395536		Clip, Multivent   (Replaces: 3395536)				$ 81.21
11	3395997		Extension, Exhaust Pipe		Appelez-nous	-
12	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.82
13	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
16	3387709		Nut, 3/8-16 (l.h.)				$ 5.60
17	W11299300		Bulkhead, Rear   (Replaces: 3387809)				$ 350.11
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 14.03
19	WPW10359272		Shaft, L.h. Thread   (Replaces: 3399509)			Immediately	$ 58.48
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Support, Roller   (Replaces: 3396801)			Immediately	$ 28.50
23	697768		Housing, Outlet		Appelez-nous	-
25	W10545924		Drum Complete   (Replaces: 697282)				$ 435.06
26	697777		Screw, 11-16 X 7/8		Appelez-nous	-
27	280114		Seal, Drum   (Replaces: 697694)			Immediately	$ 70.82
29	3391948		Washer, No. 10		Appelez-nous	-
30	120614		Nut, Hex		Appelez-nous	-
31	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 7.79
37	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 59.07
40	8066086		Plug, Hole   (Replaces: 3977358)				$ 10.75
42	WP3387137		Thermostat, Internal Bias   (Replaces: 3387137)				$ 136.38
43	WP3387230		Screw, 10-16 X 3/4   (Replaces: 3387230)			Immediately	$ 8.54
44	WP8544363		Housing, Blower   (Replaces: 697363)				$ 152.63
45	3390531		Lint Duct Assembly		Appelez-nous	-
46	WP8066047		Funnel, Burner   (Replaces: 8066047)				$ 149.26
47	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
48	WP3391912		Thermostat 255~ (124~c)   (Replaces: 3391912)			Immediately	$ 71.56
51	WP179051		Screw   (Replaces: 179051)			Immediately	$ 7.96
52	279780		Cover, Blower (includes Illus. Nos. 60 & 62)   (Replaces: 697771)				$ 92.95
53	W11782150		Baffle, Drum (3)   (Replaces: 697693)			Immediately	$ 91.02
54	WP697557		Bulkhead, Front   (Replaces: 697557)				$ 208.03
58	3389515		Cover, Lint Screen				$ 88.39
59	WP3390719		Fuse, Thermal   (Replaces: 3390719)			Immediately	$ 31.57
60	WP697770		Seal, Cover Plate   (Replaces: 697770)			Immediately	$ 7.88
62	WP8566209		Seal, Lint Duct   (Replaces: 697769)				$ 55.45
64	3389509		Screen, Lint				$ 39.25
	WP308685		Screw, 10-16   (Replaces: 3393008)			Immediately	$ 7.87
	279320		Block, Terminal   (Replaces: 690261)			Immediately	$ 68.25
	LIT3404472		Label, Wiring Diagram		Appelez-nous	-
	LIT3402328		Instructions, Installation		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	299885		Wiring, Splice (240 Volt)		Appelez-nous	-
	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
	3394926		Screw, No. 10		Appelez-nous	-
	W10851673		Transformer   (Replaces: 3404388)				$ 397.59
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
