SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evap Fan Assy./water Filter


06 - Evaporator Assy./rollers/water Tank


07 - Fountain


08 - Freezer Compartment


09 - Freezer Door


10 - Freezer Shelves


11 - Handles


12 - Hinges


13 - Ice Bucket Assy.


14 - Ice Maker


15 - Refrigerator Door


16 - Refrigerator Shelves


17 - Supplemental Information


18 - Wiring Information

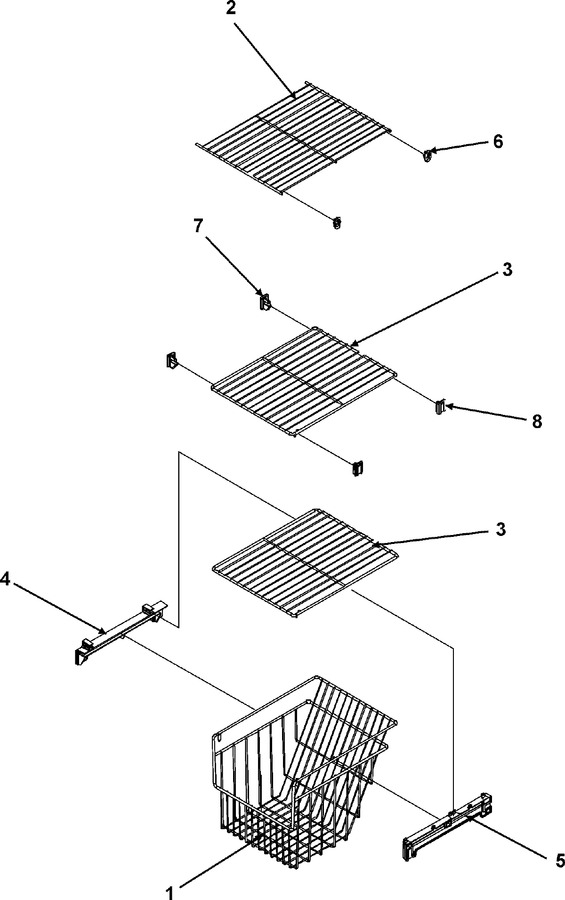

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004251		Basket, Lwr Frz	50	Appelez-nous	-
2	67004354		Shelf, Upr Frz.	50	Appelez-nous	-
3	67004690		Shelf, Lwr Frz.	50	Appelez-nous	-
4	67004182		Rail, Basket (lt)	50	Appelez-nous	-
5	67004179		Rail, Basket (rt)	50	Appelez-nous	-
6	C8973801		Support, Frz Shelf	50			$ 8.35
7	12015002		Support, Shelf (lt)	50			$ 7.38
8	WP10941102		Support, Shelf (rt)	50			$ 11.81

    View Diagram in Separate Window       Print Part List
