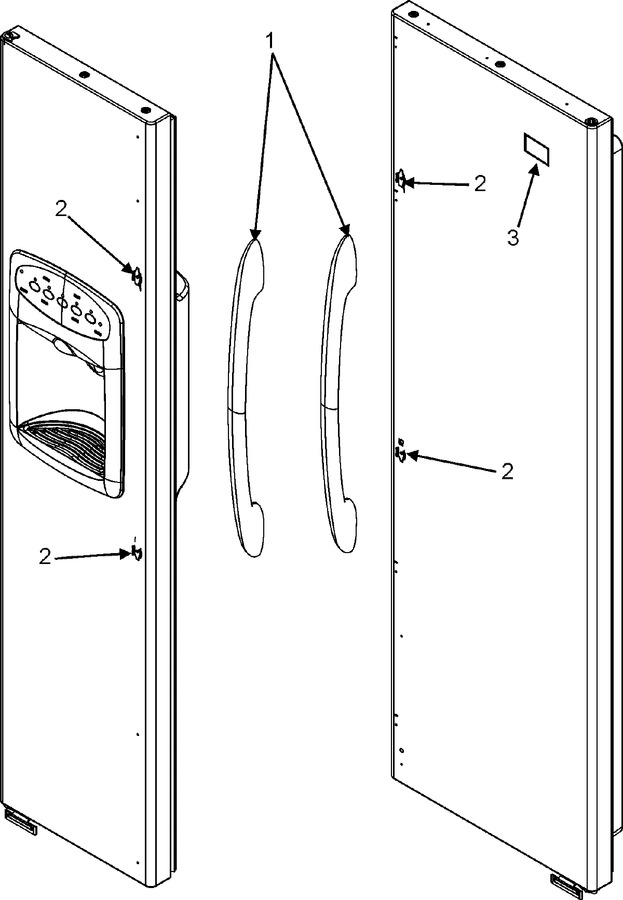

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004373		Handle Assy., Door (wht)	50			$ 76.83
1	67007028		Card, Handle Release Ss & Ws   (Replaces: 67004112)	50			$ 10.57
2	WP7101P126-60		Screw, Sm No.10   (Replaces: 67003800)	50		Immediately	$ 7.61
2	WP67006852		Clip, Handle Butterfly   (Replaces: 67003337)	50			$ 25.47
3	61002078		Nameplate (wht)	50	Appelez-nous	-
