SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

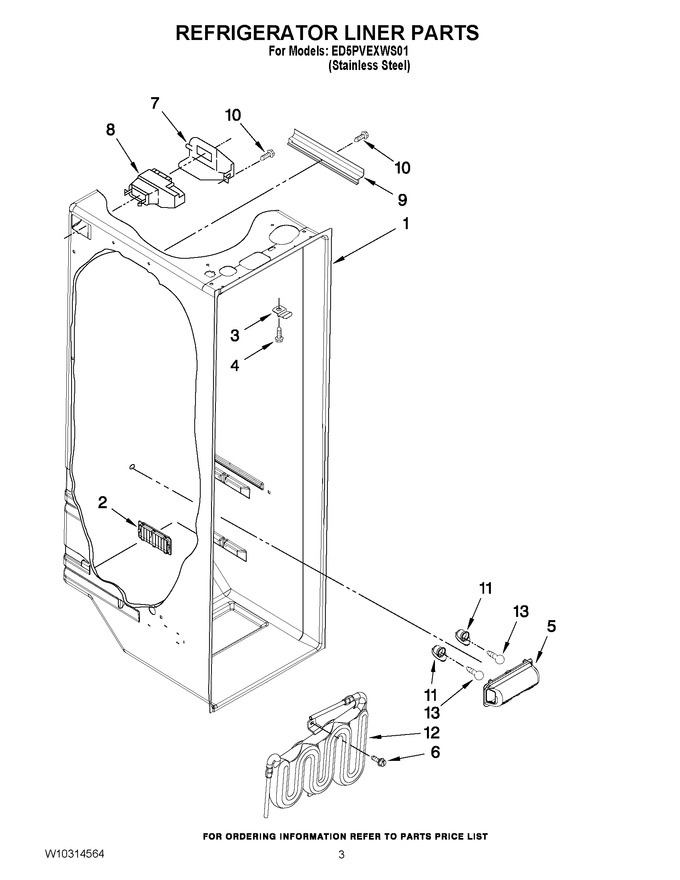

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	2257741		Louver		Appelez-nous	-
3	2311612		Clip		Appelez-nous	-
4	WP489464		Screw   (Replaces: 3400824)			Immediately	$ 7.83
5	W11239891		Lens, Light   (Replaces: W10166019)				$ 96.69
6	488280		Screw		Appelez-nous	-
7	2152019		Air Diffuser Cover				$ 86.03
8	WPW10151374		Air Diffuser Assembly   (Replaces: W10151374)			Immediately	$ 99.78
9	W10252495		Cover, Conduit		Appelez-nous	-
10	W10759522		Screw   (Replaces: 486298)				$ 7.75
11	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
12	WPW10276792		Reservoir   (Replaces: W10204356)				$ 137.57
13	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67

    View Diagram in Separate Window       Print Part List
