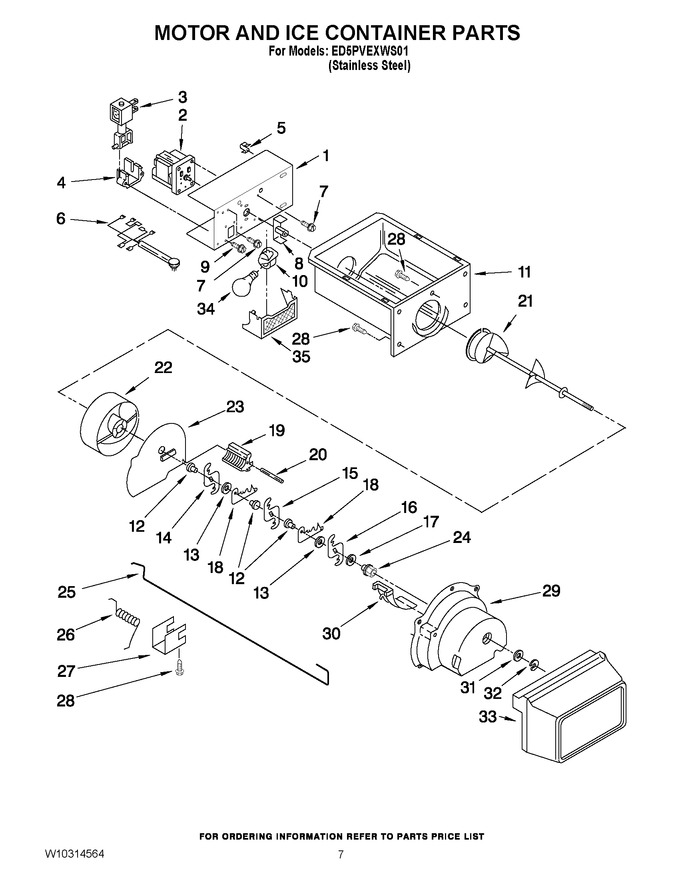

05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254587		Bracket, Motor		Appelez-nous	-
2	W11671282		Motor, Dispenser   (Replaces: W10181208)			Immediately	$ 110.51
3	WP2152713		Soleniod Assembly   (Replaces: 2152713)				$ 238.20
4	W10850503		Guide, Soleniod   (Replaces: 2149100)				$ 10.35
5	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
6	2311639		Wiring Assembly, Ice Dispenser   (Replaces: W10281336)				$ 140.16
7	WP489399		Screw   (Replaces: 489399)				$ 6.95
8	WPW10169511		Coupling, Motor   (Replaces: W10169511)				$ 23.34
9	WP489478		Screw   (Replaces: 489478)				$ 7.75
10	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 110.16
11	WPW10670845		Ice Container   (Replaces: 2196091)				$ 189.70
12	WP1119005		Spacer, Step (3)   (Replaces: 1119005)				$ 11.18
13	WP1119007		Spacer, Flat (2)   (Replaces: 1119007)				$ 14.07
14	W10278731		Blade, Rotary   (Replaces: 2257022)				$ 86.54
15	W10278732		Blade, Rotary   (Replaces: 2257023)				$ 86.67
16	W10278733		Blade, Rotary   (Replaces: 2257024)				$ 86.67
17	489235		Washer, Plain				$ 8.05
18	W10278727		Blade, Fixed (2)		Appelez-nous	-
19	2157405		Block, Blade				$ 21.27
20	489229		Roll Pin				$ 46.16
21	W10422851		Auger   (Replaces: 2196295)				$ 165.85
22	4388736		Drum   (Replaces: 2305377)				$ 92.35
23	W10852691		Floating Baffle   (Replaces: 2171682)			Immediately	$ 33.19
24	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 7.52
25	W11596045		Control Arm   (Replaces: 2155231)				$ 33.82
26	1119020		Spring, Return				$ 18.22
27	1119021		Retainer Clip, Rod				$ 10.44
28	WP488787		Screw   (Replaces: 488886)				$ 10.58
29	WPW10185018		Housing, Crusher   (Replaces: 2180348)				$ 124.43
30	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 7.57
31	489234		Washer, Plain				$ 13.37
32	WP489236		Retainer Ring   (Replaces: 489236)			Immediately	$ 12.17
33	2204321		Front Cover, Ice Container		Appelez-nous	-
34	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
35	WP2171706		Light Lens, Dispenser   (Replaces: 2171706)				$ 91.34
100	WPW10312300		Ice Container (complete)   (Replaces: W10192856)				$ 369.61
