Diagram # Part Number Description Series Availability Ships Price Add to Cart
100 C3592901 Retainer Appelez-nous -
101 B0599001 Trim Appelez-nous -
102 M0211716 Screw A K Appelez-nous -
103 M1252001 Screw Appelez-nous -
103 M1252004 Screw Appelez-nous -
104 B5644001 Cover Appelez-nous -
104 D7022901 Door Closure Appelez-nous -
105 D7204901 Trim-door Appelez-nous -
106 M0214028 Screw Appelez-nous -
107 D7189178 Door Ref-c-sdi25a Appelez-nous -
107 D7189179 Door Ref-a-sdi25a Appelez-nous -
107 D7189180 Door Ref-g-sdi25a Appelez-nous -
107 D7189177 Door Ref-w-sdi25a Appelez-nous -
111 M0254129 Screw Appelez-nous -
112 B5720701 Handle Appelez-nous -
115 D7212301 Trim-door Appelez-nous -
119 B0534409 Insulation Appelez-nous -
120 B5629002 Insulation Appelez-nous -
121 B5612005 Insulation Appelez-nous -
122 B5629008 Insulation Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

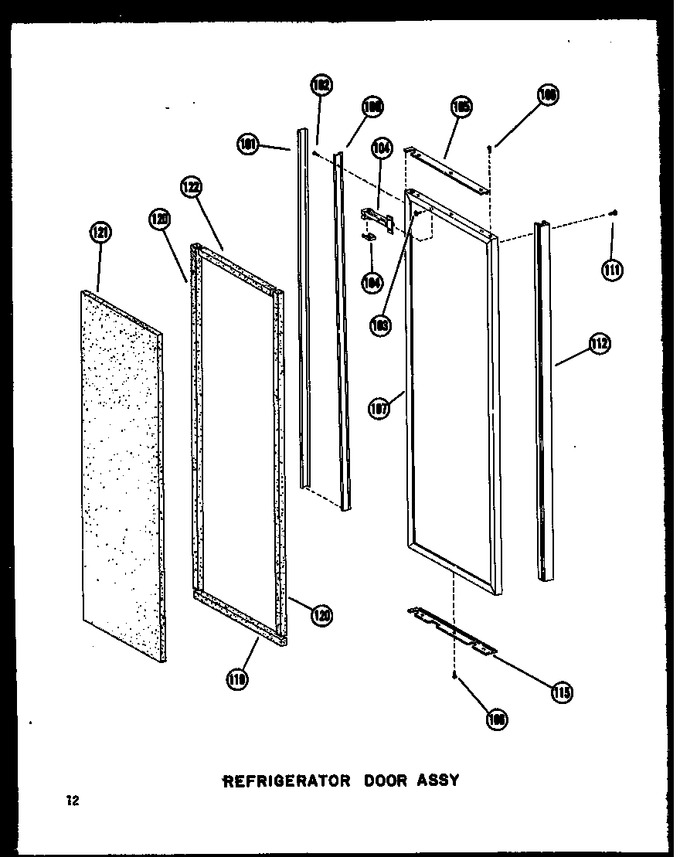

Diagram for CSDI25A (BOM: P6035017W)
